Outdoor-ready, day/night fixed mini domes with HDTV performance.
- Compact, vandal-resistant, outdoor-ready design
- 3 MP / HDTV 1080p
- Day/night functionality
- Multi-view streaming
- Enhanced capacity for video analytics
- Input/output ports for external devices
- Power over Ethernet
- Edge storage
Outdoor-ready, day & night

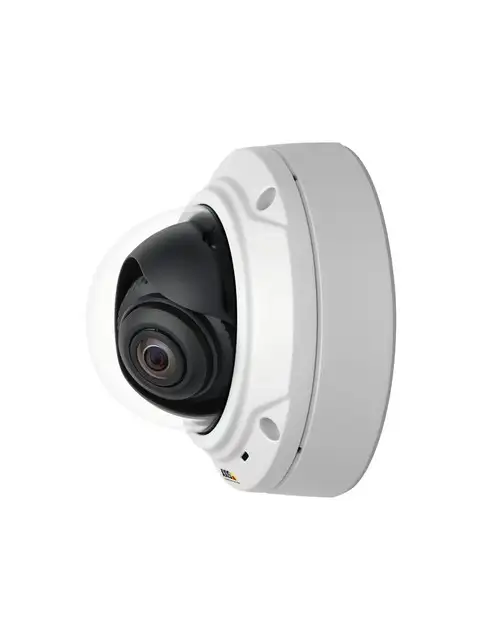

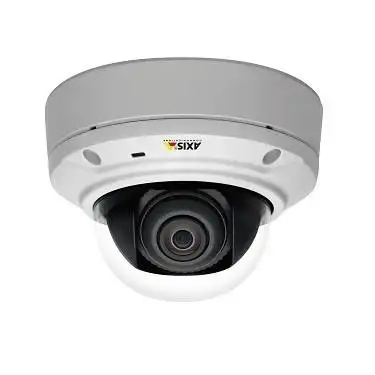

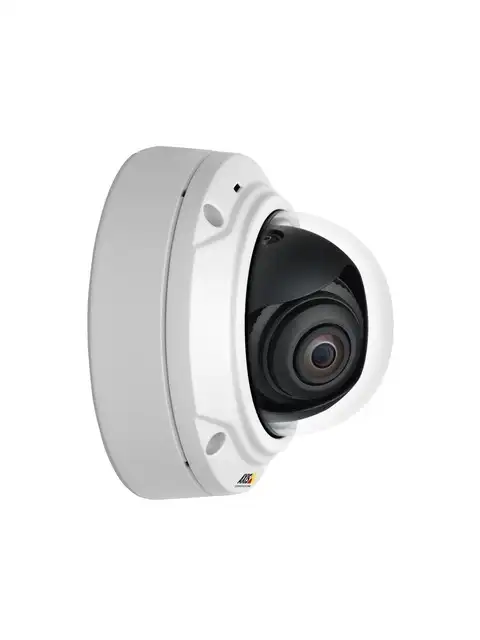

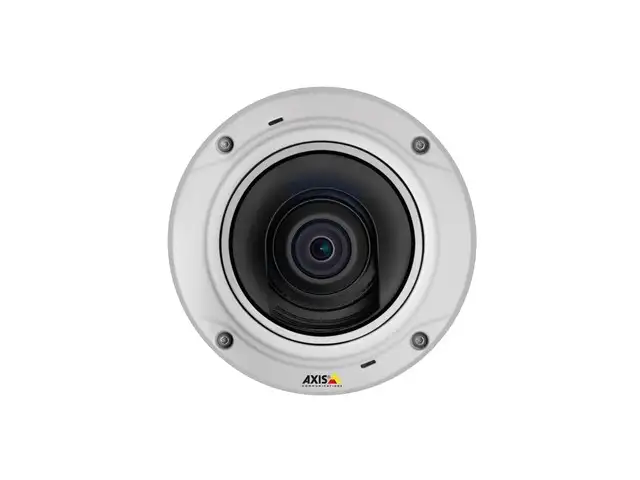

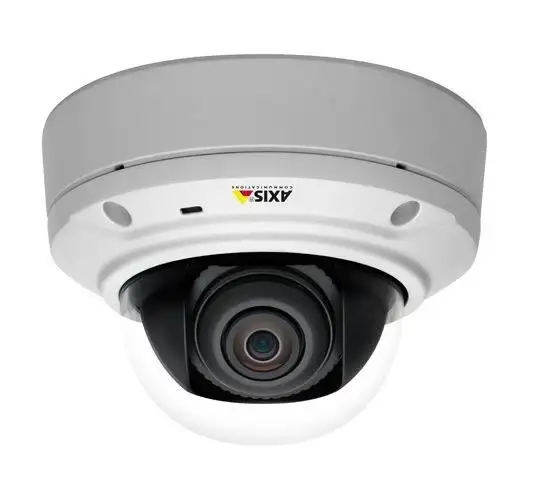

AXIS M3026-VE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, light-sensitive 3-megapixel/HDTV 1080p fixed dome that provides detailed wide-angle views day and night. The camera is ideal for installation indoors or outdoors at hotels, gas stations, boutiques, restaurants, offices and schools.
The mini dome is outdoor-ready and vandal-resistant, with IP66, NEMA 4X and IK10 ratings. It has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white video.
Multi-view streaming and intelligent video
AXIS M3026-VE offers multi-view streaming, which enables different areas in the camera’s field of view to be cropped from the full view and streamed simultaneously for viewing or recording. Multi-view streaming can help reduce bandwidth and storage use while enabling a large area to be covered with just one camera.
The fixed dome has enhanced capacity for intelligent video applications that are based on the AXIS Camera Application Platform. It also has input/output ports for connection to external devices for alarm management.
The camera offers a convenient video management solution with its built-in memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion.
Easy to install
AXIS M3026-VE can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation and comes focused at delivery. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles.
The camera comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet (IEEE 802.3af).
| Tootja | AXIS |
| Tootekood | 0547-001 |
| EAN | 7331021007956 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | IP security camera |
| Tootja koduleht | https://www.axis.com/products/cam_m3026ve/index.htm |
| .: Disain :. | |
| Kujutegur | Dome |
| .: Mälu :. | |
| Ühilduvad mälukaardid | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Paigaldatud operatiivmälu | 512 MB |
| .: Võrgustumine :. | |
| WiFi | Ei |
| Ethernet LAN | Jah |
| .: Pesad & liidesed :. | |
| Liides | RJ-45 |
| Ethernet LAN (RJ-45) pordid | 1 |
| Võimsus ja energiatarve | |
| Power over Ethernet (PoE) | Jah |
| Objektiivi süsteem | |
| Lens viewing angle, horizontal | 106 ° |
| Ergonoomika | |
| Angle of rotation | 180 ° |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | -30 - 50 °C |
| .: Kaal ja mõõtmed :. | |
| Netokaal | 0.74 kg |
| Brutokaal | 1.06 kg |
| Laius | 132 mm |
| Sügavus | 132 mm |
| Kõrgus | 93 mm |
| Toote kaal | 740 g |
| .: Pakendi sisu :. | |
| Tarvikud kaasa arvatud | Installation Guide, Installation and Management Software CD,<br/> Windows decoder 1-user license, Drill hole template, Resitorx<br/> L-key, Terminal block connector |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.0039 cubm |
| Transpordipakendi kaal | 1.06 kg |
| Transpordipakendi kõrgus | 15 cm |
| Transpordipakendi laius | 13 cm |
| Transpordipakendi sügavus | 20 cm |
| Muud andmed | |
| Unit Box Length | 0.2 |
| Placement supported | Indoor & outdoor |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Cabling technology | 10/100Base-T(X) |
| IP address filtering | Jah |
| Night vision | Jah |
| Image quality adjustment | Brightness/Colour depth/Contrast/Saturation/Sharpness |
| Progressive scan | Jah |
| Active tampering alarm | Jah |
| Alarm input/output | Jah |
| Video motion detection | Jah |
| Alert notification type | |
| HTTPS encryption | Jah |
| Unit Box Height | 0.15 |
| Unit Box Width | 0.13 |
| CnCode | 85258900 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0039 cubm |
| Product Net Weight | 0.74 kg |
| Unit Calculated Weight | 1.06 kg |
| Summary | Axis M3026-VE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.6 mm (1 / 3.6"). Lens diameter: 2 mm |
| Product colour | White |
| Harmonized System (HS) code | 85258900 |
| Tilt angle range | 0 - 70 ° |
| Infrared (IR) cut-off filter | Jah |
| PTZ control | Jah |
| Day/night mode | Jah |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Jah |
| Maximum aperture number | 2 |
| Mounting type | Ceiling/wall |
| Power source type | PoE |
| Sensor type | CMOS |
| Supported graphics resolutions | 160 x 120/2048 x 1536 (QXGA) |
| Supported video modes | 1080p |
| Video compression formats | H.264/MPEG4 |
| Video formats supported | H.264/M-JPEG |
| Windows operating systems supported | Jah |
| Built-in HDD | Ei |
| Camera shutter speed | 1/30500 - 2 s |
| Connectivity Technology | Wired |
| Diameter | 132 mm |
| Electronic Shutter Speed | 1/30500 s to 2 s |
| Flash Memory | 128 MB |
| Focal Length | 2mm |
| Frame Rate | 30 fps |
| Housing material | Aluminium |
| Lens diameter | 2 mm |
| Lens Mount | M12 |
| Min. Illumination | 0.3 Lux |
| Minimum Illumination | 0.06 lx |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Operating relative humidity (H-H) | 10 - 100 % |
| Optical sensor size | 1/3.6 " |
| Pan range | 175 - 175 ° |
| Sensor size | 1/3.6" (effective) progressive scan RGB CMOS |
| Terminal block | 1 |
| Total megapixels | 3 MP |
| Video streaming | Jah |
