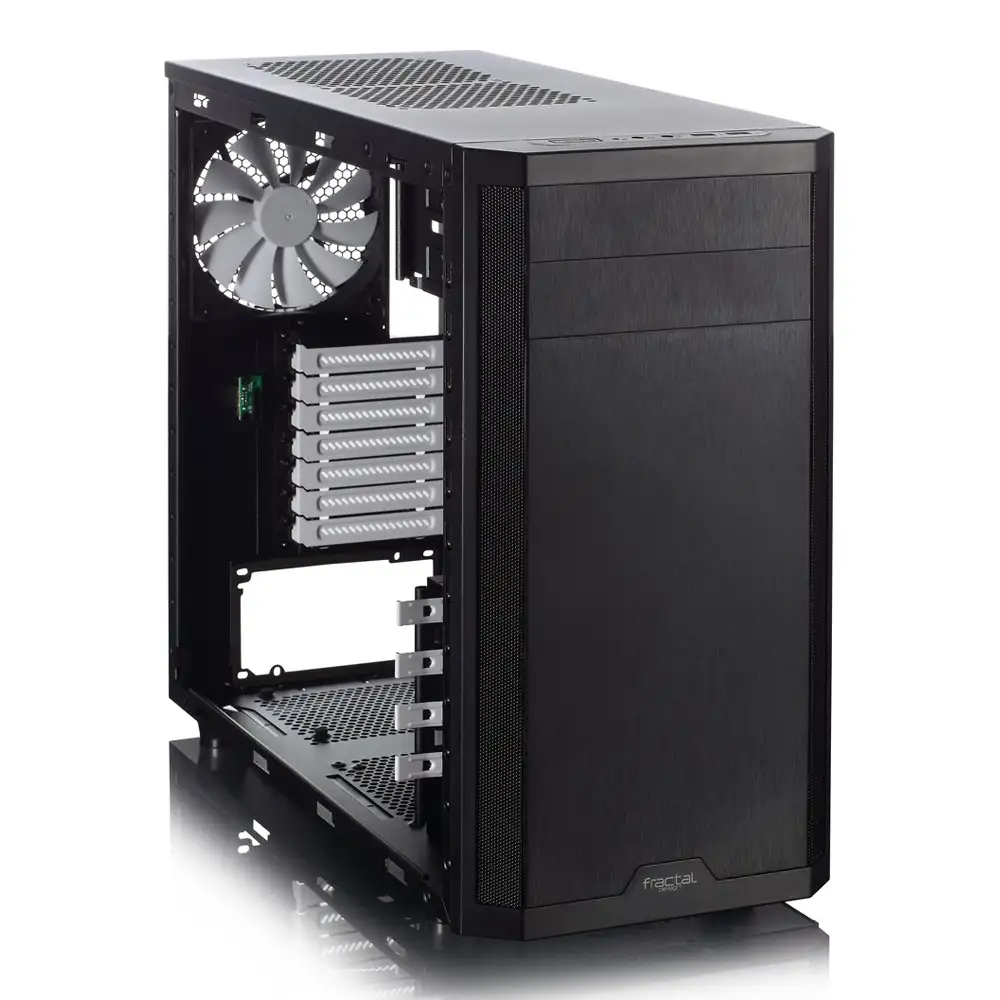

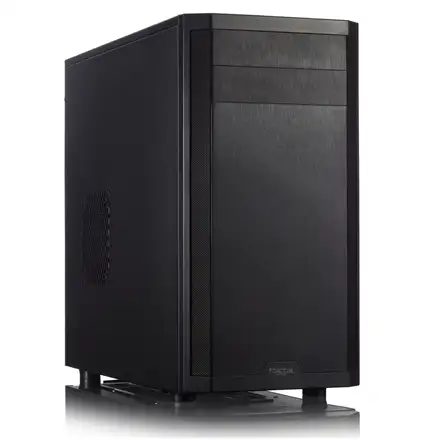

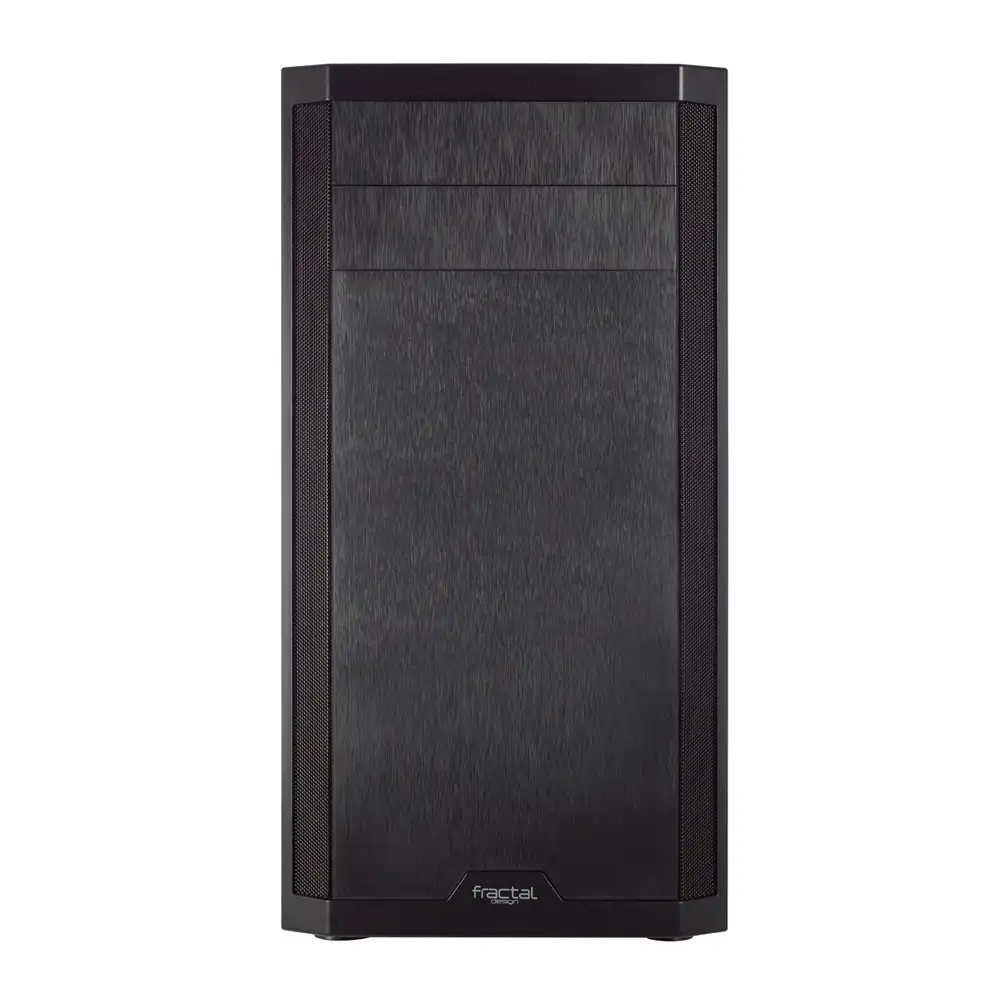

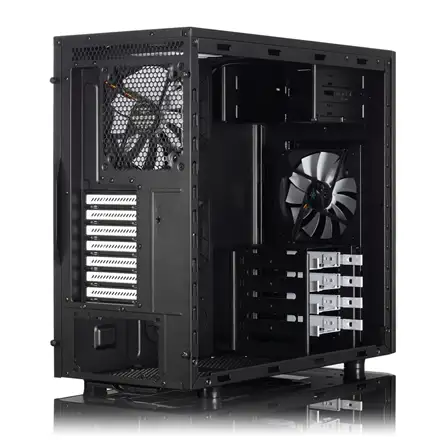

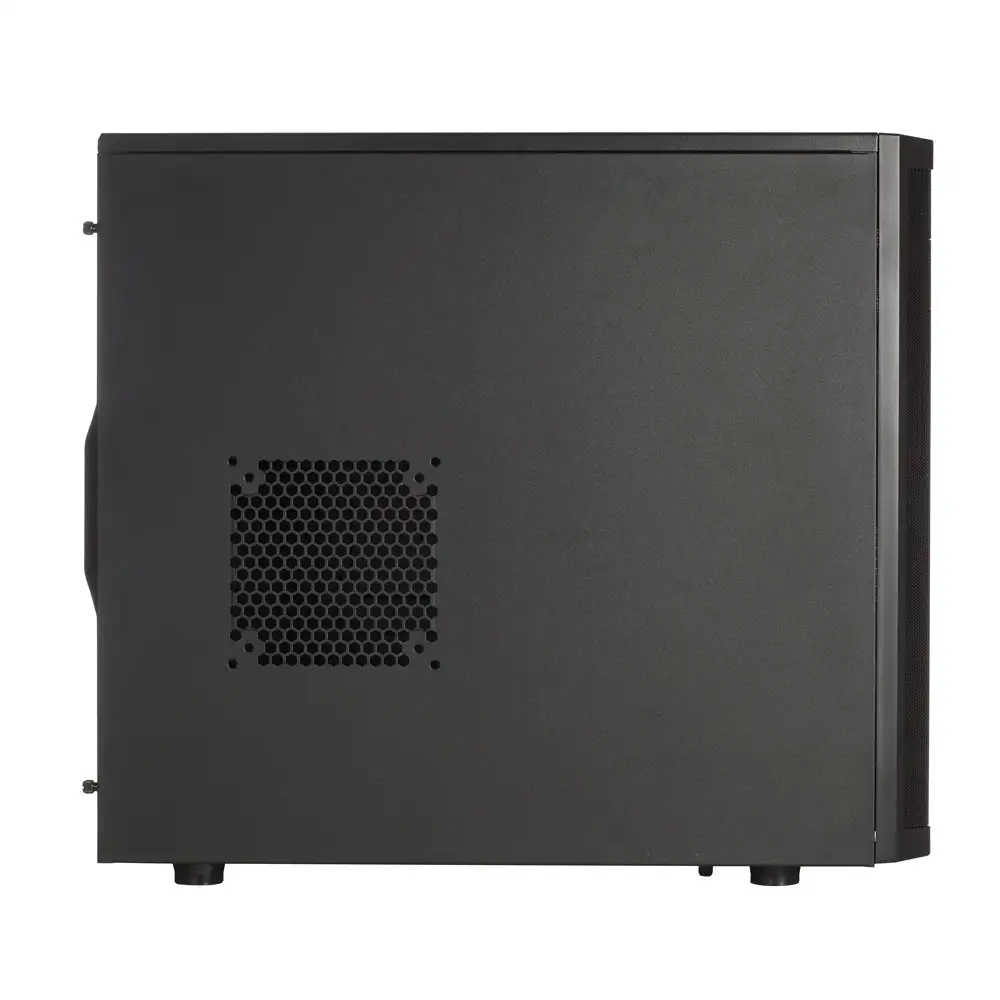

Fractal Design CORE 3500 2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white)Reset button, Black, E-ATX, Power supply included No

.: Üldised andmed :.

Seadme tüüp

PC

.: Disain :.

2,5" salvede arv

2

3,5" lahtrite arv

4

5,25" lahtrite arv

2

Aknaga

Ei

CPU jahuti maksimaalne kõrgus

18,5 cm

Emaplaadi toetatud kujutegurid

ATX,EATX,Micro-ATX,Mini-ITX

Jahutuse tüüp

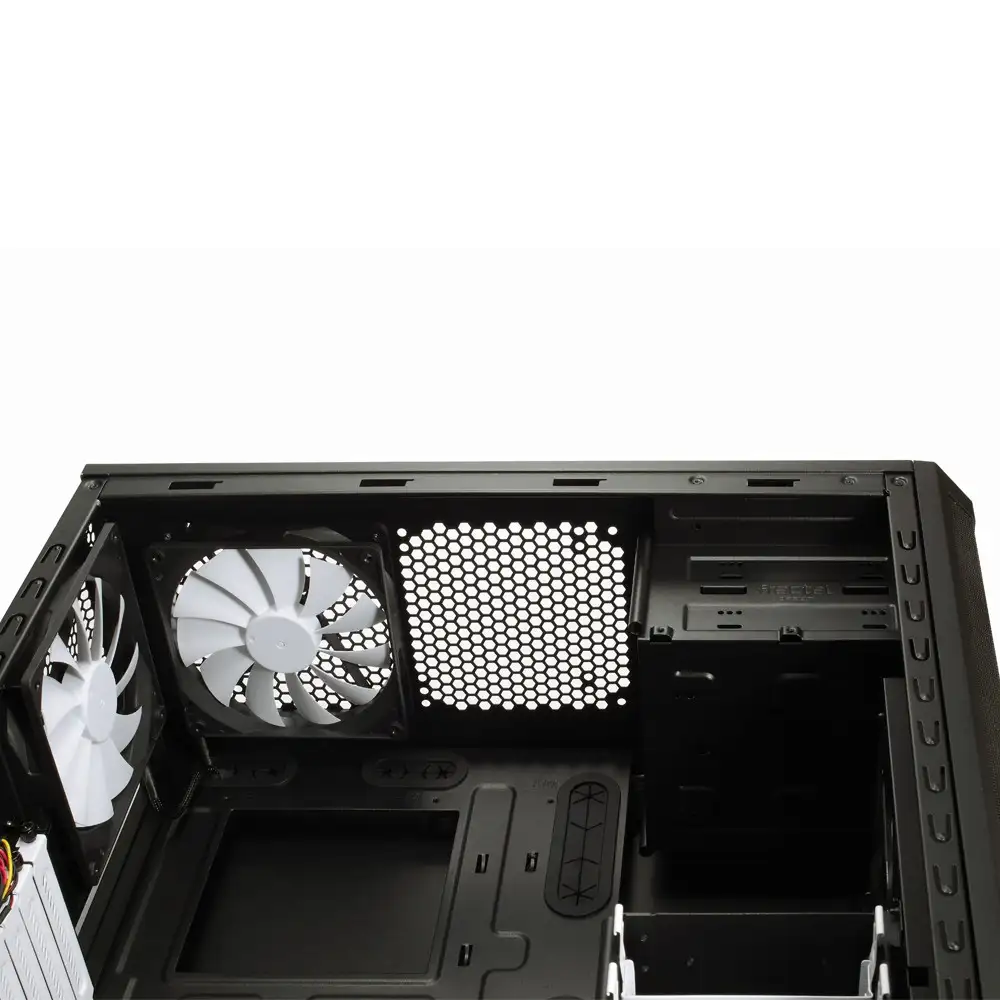

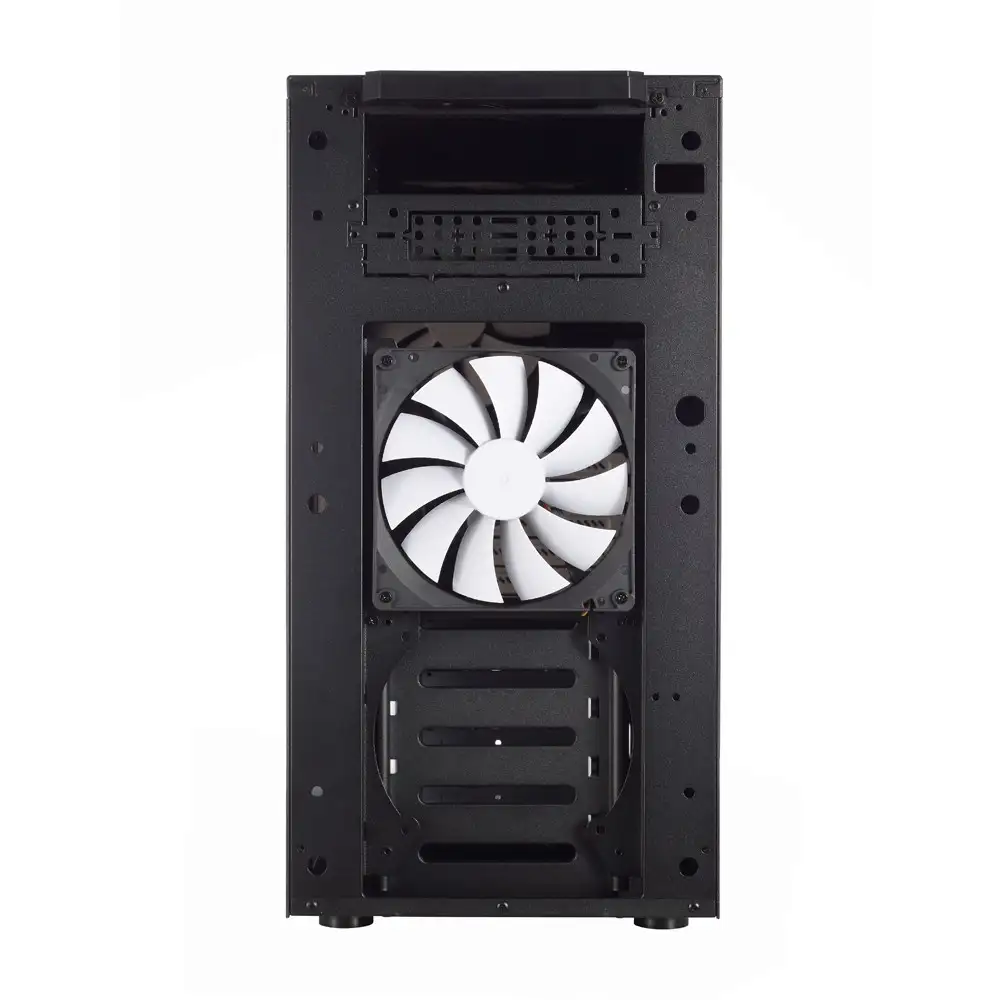

Front: 2 - 120mm fans (included is 1 hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120/140mm fan (included is 1 hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Top: 2 - 120/140mm fan (not included)Bottom: 1 - 120/140mm fan (not included, PSU length limits apply)Side: 1 -120/140mm fan (not included)1 - integrated fan controller on the backside for up to 3 fansWATER COOLING COMPATIBILITY:Front –Slim 240 or 280mm radiator: 15mm fan spacing required for full fastening, radiators with 20mm fan spacing can be used with only the top half fastened to the case. (with lower HDD cage moved to secondary position)Front - Thick 240 or 280mm radiators supported with HDD cage in alternate position or completely removed. Motherboards larger than mATX are not fully supported with HDD cage in the tertiary position.Top – Slim 240mm radiator (with no components on the upper 11 mm on the motherboard that are taller than 38mm)Top – Slim 280mm radiator with slim fansRear – 120/140 mm radiator

Kujutegur

Miditorn

Laienduspesade arv

7

LED-indikaatorid

HDD, Power

Sisseehitatud kõlar(id)

Ei

Toote värv

Must

Tüüp

PC

.: Mälu :.

Toetatud kõvakettasuurused

2.5,3.5"

.: Pesad & liidesed :.

Audiosisend

Jah

Audioväljund

Jah

USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk

2

Jahutus

Installitud esiventilaatorid

2x 120 mm

.: Tehnilised andmed :.

Garantii

24 month(s)

Toide

Toiteploki asukoht

Põhi

Kaasas toiteplokk

Ei

Ergonoomika

Lähtestusnupp

Jah

.: Pakendi andmed :.

Pakendi laius

32.2 cm

Pakendi kõrgus

62.5 cm

Pakenditaara kaal

1.34 kg

Pakendi maht

0.11 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

54 cm

Pakendi laius ( mm )

322 mm

Pakendi kõrgus ( mm )

625 mm

Pakendi kaal

10.1 kg

Pakendi pikkus ( mm )

540 mm

Tehnilised andmed

Plastic (No PET)

27 g

Power supply location

Bottom

Number of 5.25" bays

2

WEEE tax

Ei

Built-in speaker(s)

Ei

Mudeli number

CORE 3500

Front fans installed

2x 120 mm

Number of 2.5" bays

2

Number of 3.5" bays

4

Power supply included

Ei

Side window

Ei

Supported motherboard form factors

ATX, EATX, Micro-ATX

Audio Input

Jah

Audio Output

Jah

Cooling System

Front: 2 - 120mm fans (included is 1 hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Rear: 1 - 120/140mm fan (included is 1 hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Top: 2 - 120/140mm fan (not included) Bottom: 1 - 120/140mm fan (not included, PSU length limits apply) Side: 1 -120/140mm fan (not included) 1 - integrated fan controller on the backside for up to 3 fans WATER COOLING COMPATIBILITY: Front –Slim 240 or 280mm radiator: 15mm fan spacing required for full fastening, radiators with 20mm fan spacing can be used with only the top half fastened to the case. (with lower HDD cage moved to secondary position) Front - Thick 240 or 280mm radiators supported with HDD cage in alternate position or completely removed. Motherboards larger than mATX are not fully supported with HDD cage in the tertiary position. Top – Slim 240mm radiator (with no components on the upper 11 mm on the motherboard that are taller than 38mm) Top – Slim 280mm radiator with slim fans Rear – 120/140 mm radiator

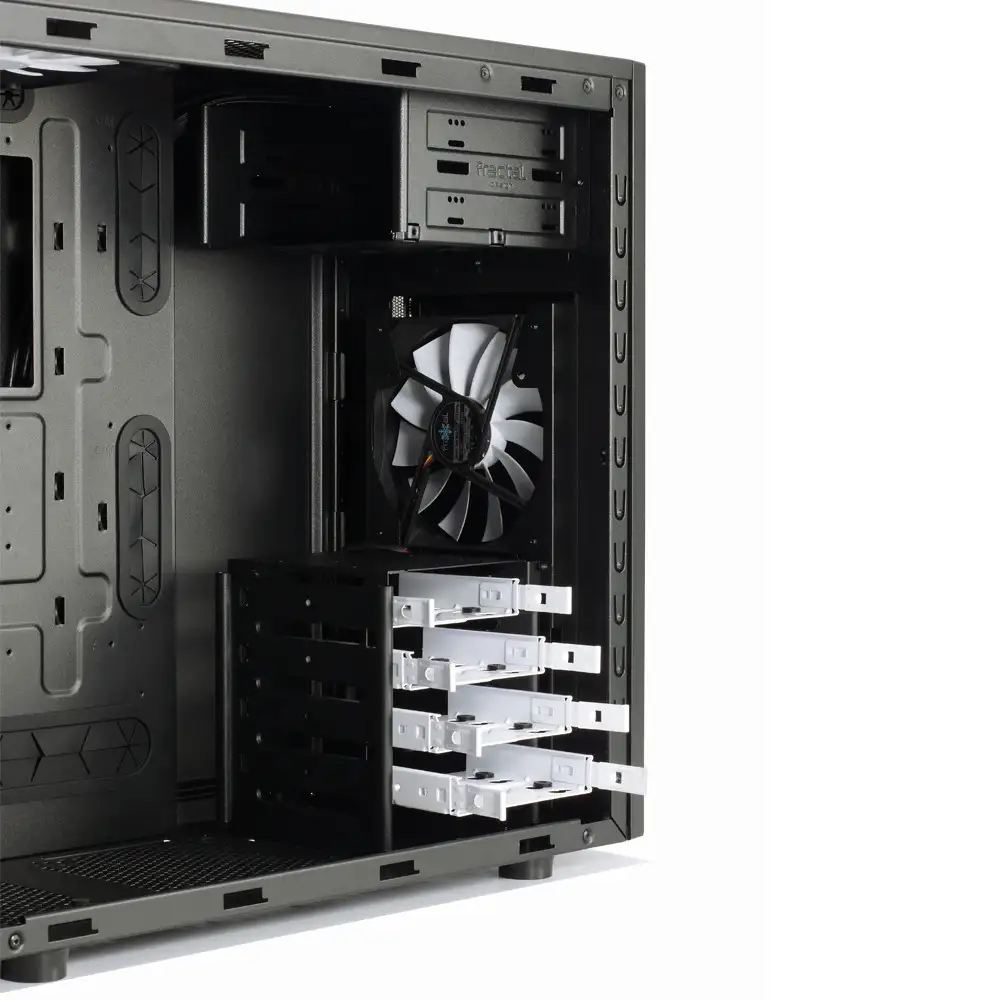

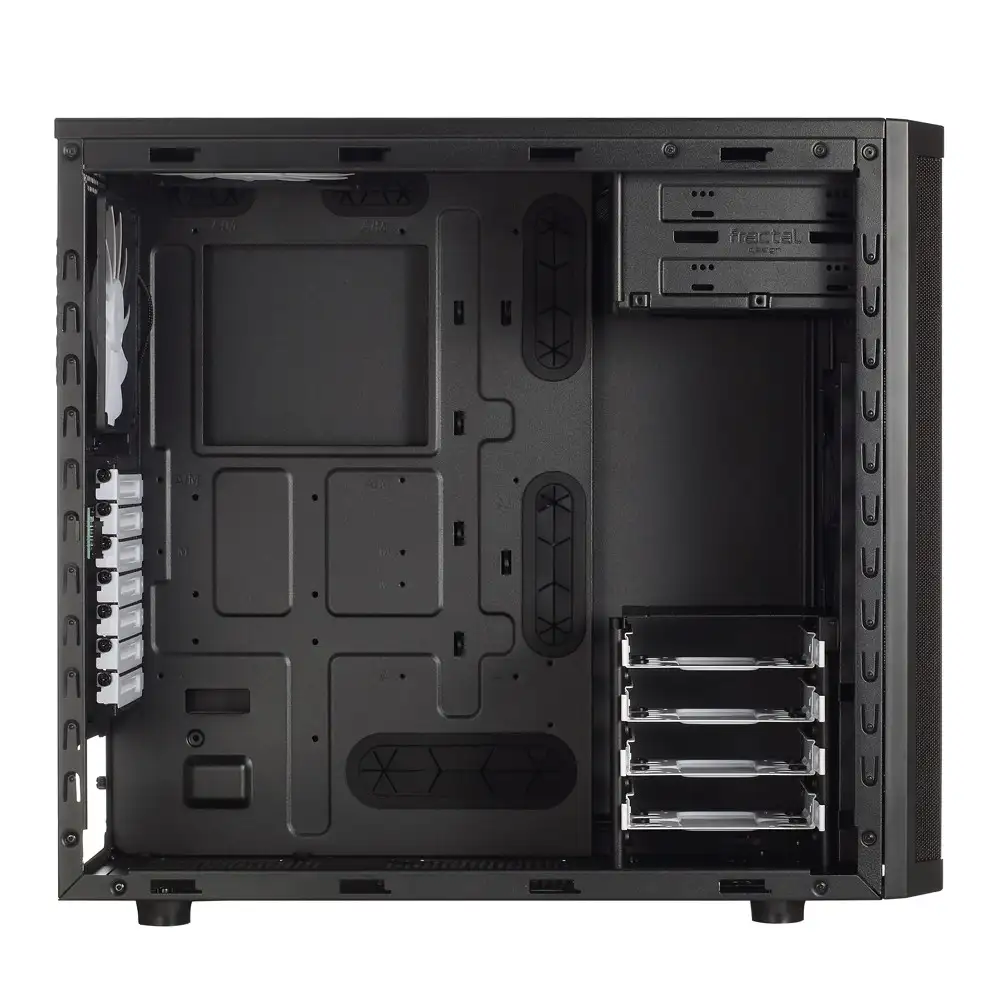

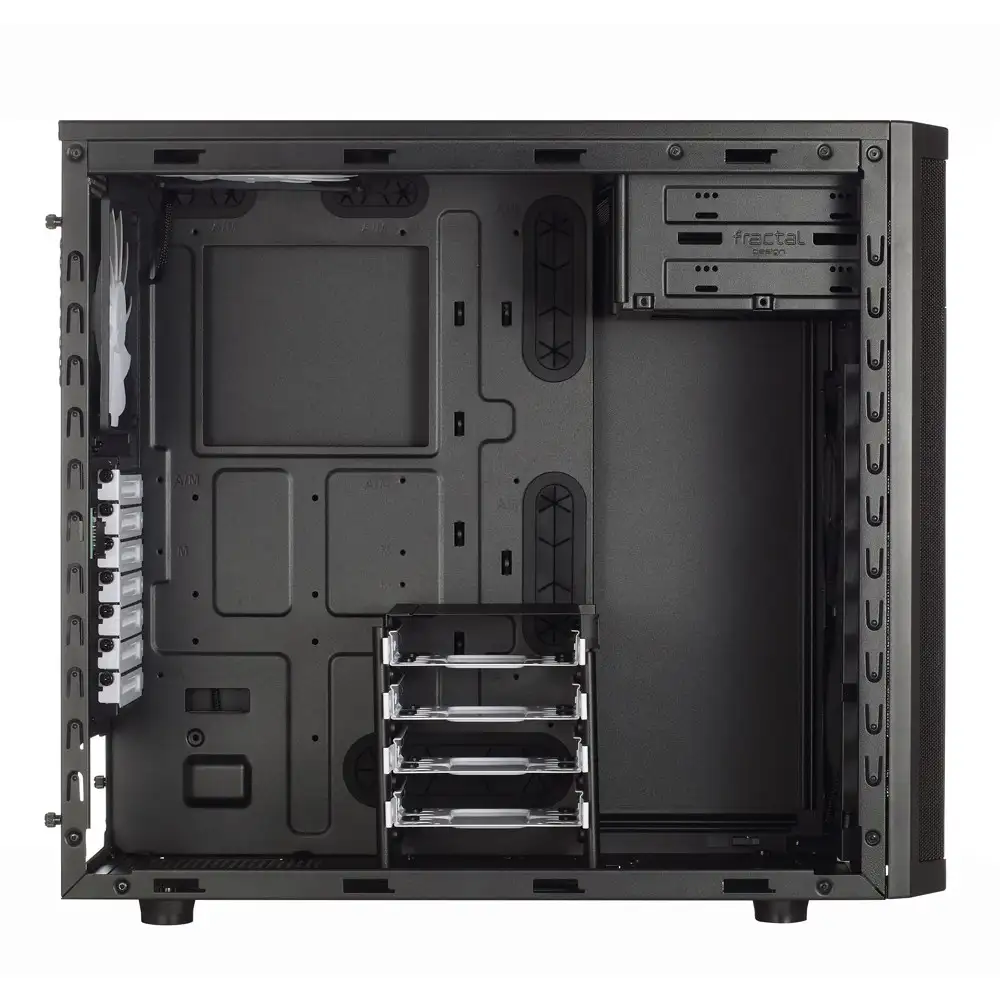

Drive bays

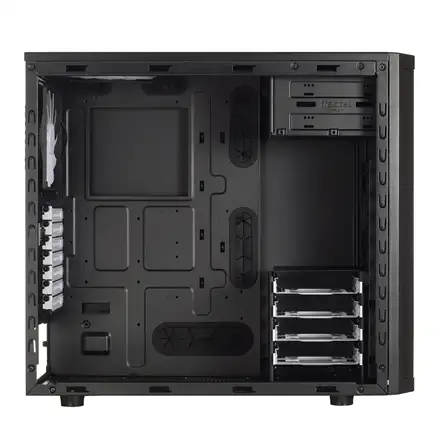

2 drive bays of 5,25"4 bays 3.5"- all compatible with SSDs2 -2.5" dedicated SSD unit position "

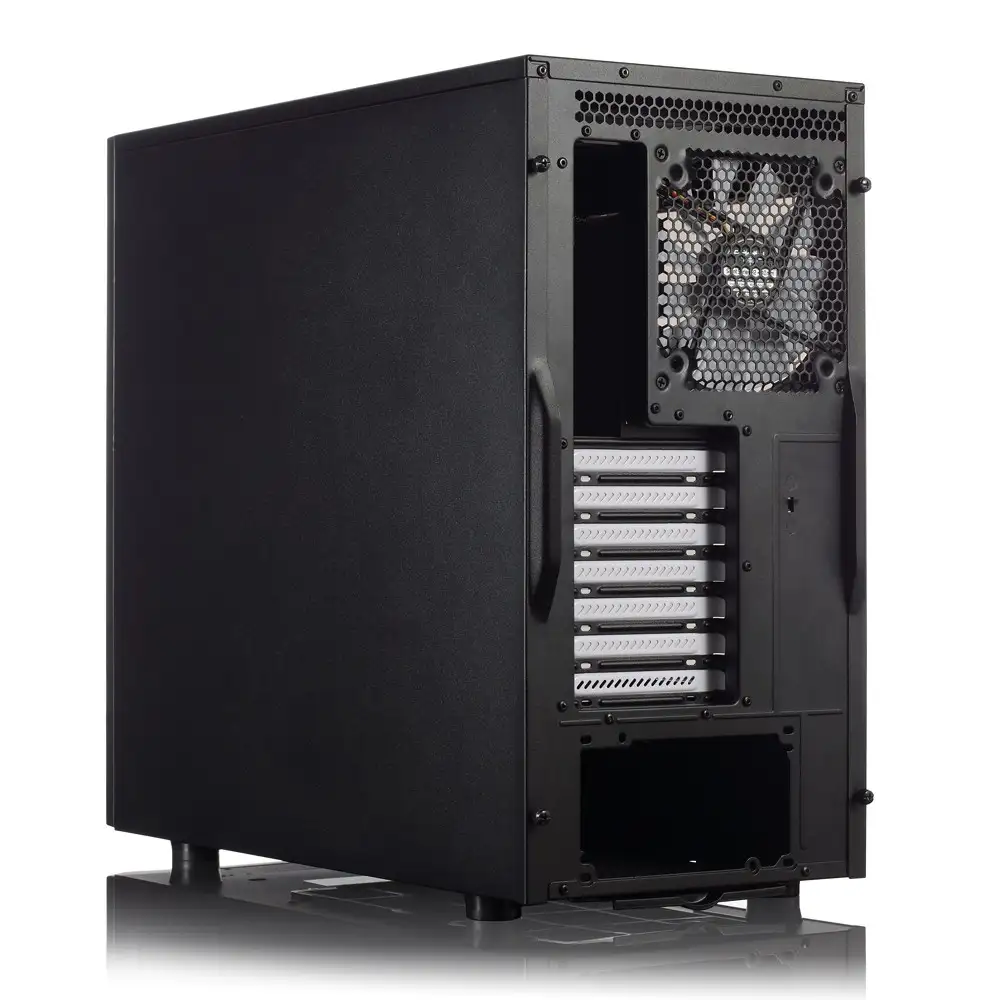

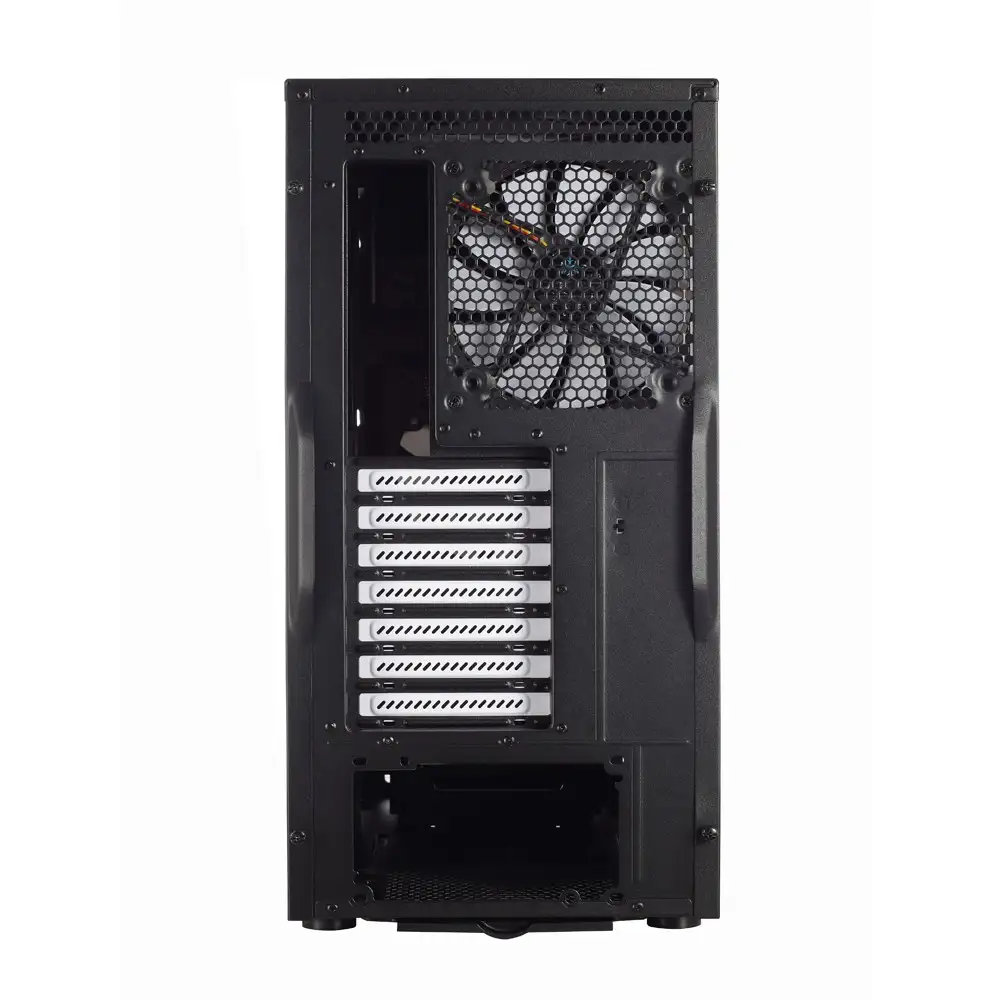

Expansion slots

7 expansion slots

I/O Panel

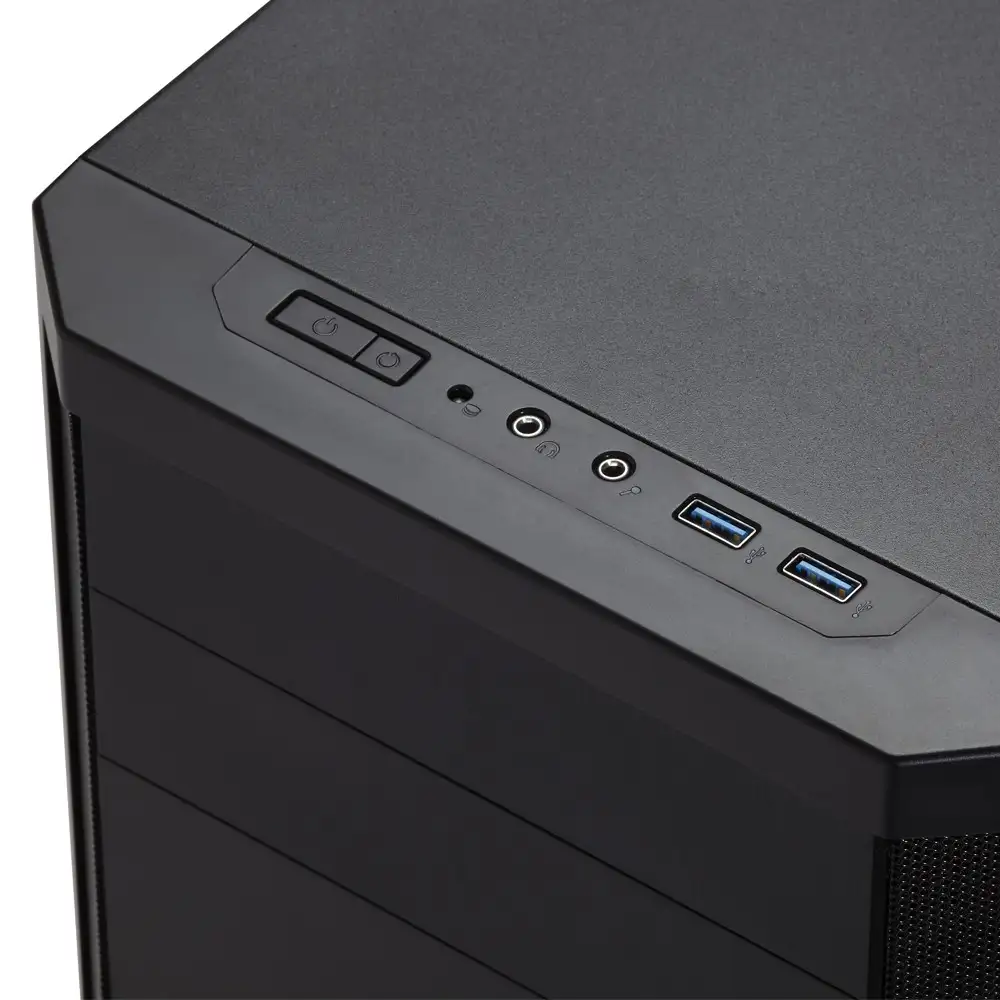

2 - USB 3.0 Audio in/out Power button with LED (white) HDD activity LED (white) Reset button

Maximum CPU cooler height

18.5 cm

Panel Type

2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white)Reset button

Supported hard disk drive sizes

2.5,3.5 "

Tehnilised andmed

Netokaal

8.8 kg

Brutokaal

10.14 kg

Laius

23.3 cm

Sügavus

517 mm

Kõrgus

465 mm

Mõõtmed (l x s x k)

233 x 465 x 517mm

Toote kaal

8.6 kg

Mõõdud (l x s x k)

233 x 465 x 517mm mm
