Deeper Smart Fishfinder Sonar Pro+, Wifi+GPS for iOS, Android Black

.: Üldised andmed :.

Seadme tüüp

Sonar

.: Disain :.

Toote värv

Black

.: Võrgustumine :.

WiFi

Jah

.: Aku & Toiteallikas :.

Aku mahutavus

450 mAh

Aku tüüp

Lithium Polymer, 3.7V Rechargeable

Akuelementide arv

Accumulator

Võimsus ja energiatarve

Sisseehitatud aku

Jah

.: Tehnilised andmed :.

Garantii

24

Toide

Toiteallikas

Micro USB B type, 5V DC, 450mA max

Muud funktsioonid

Ühilduvus

From iOS 8.0 and Android 4.0 to the latest iOS and Android devices

Töötingimused

Temperatuur

Temperature: Water temperature Sensor. Temperature unit: Celsius / Fahrenheit. Operational temperature: -4F to 104F/ -20C to 40C

.: Pakendi andmed :.

Pakenditaara kaal

0.14 kg

Pakendi maht

0.00 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

75 mm

Pakendi laius ( mm )

135 mm

Pakendi kõrgus ( mm )

150.00 mm

Tehnilised andmed

Sonar angle

Wide angle - 4.3 ft (1.3 m); narrow angle - 2 ft (0.5 m)

WEEE maks

Jah

WEE klassifikatsioon

CL109:6:2017-04-01

Composition of battery

CL127:KT:2016-12-09

Classification of battery

CL126:NE:2016-12-09

TI weight (kg)

0.20 kg

Paper/Pasteboard

110.00 g

Palette Qty

1 pc(s)

PET

32.00 g

Inner carton packing Qty

1 pc(s)

Sonar depth

80 meters

Üldised näitajad

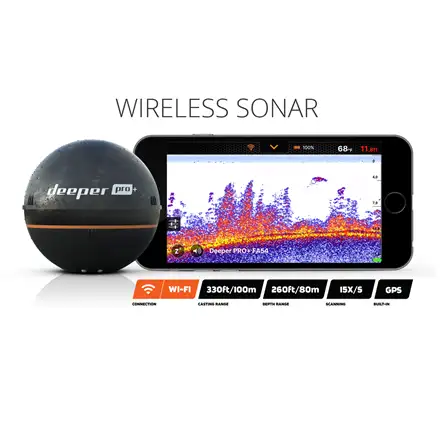

Deeper Smart Sonar PRO+ is a wireless, castable echo-sounder compatible with iOS and Android smartphones and tablets. Wi-Fi connection enabled to maximize both the distance between the Deeper Smart Sonar PRO+ and the device holder up to 330ft/100 m and the depth range up to 260ft/80 m. Advanced high-frequency technology enables the Deeper Smart Sonar PRO+ to quickly transfer more accurate data. The higher scanning frequency allows the device to capture faster moving objects and the scanning resolution measures smallest of objects – all to deliver the highest quality echo-sounder data available in a single, compact wireless unit. The Onshore GPS Mode enables Deeper Smart Sonar PRO+ to produce bathymetric – bottom contour maps, while onshore or off. This advanced bathymetric technology allows users to gather and process bottom contour data while fishing from the dock, bridge, shore, kayak, float tube, boat – and even while wading in the stream – all at a distance of up to 330ft/100 m away from the Deeper Smart Sonar PRO+. This breakthrough technology enables users to gain a complete knowledge of the entire bottom contour of the water body in any fishing condition. The Deeper Smart Sonar PRO+ is the most valuable addition to your fishing gear. It is designed to scan the entire water column and mark fish, measure depth, temperature, bottom structure and other valuable data points that are essential for productive fishing – then stream that information instantaneously to your smartphone or tablet. The Deeper App offers advanced features such as Real Time Mapping, Unlimited Data History and Ice Fishing Mode to make your Deeper Smart Sonar PRO+ useful for all fishing conditions. Sonar Features: ●Wireless Wi-Fi Connection ●Onshore GPS Mode ●Dual Frequency Sonar ●Fresh and Salt Water Operation ●Small and Ultra Light castable design ●Rechargeable Battery with 5.5-hour continuous use on a single charge ●Complete re-charge time 2 hours App Features: ●Real Time Mapping & Free Offline Maps ●Unlimited Data History ●Ice Fishing Mode ●Depth, Temperature, Bottom Structure, Fish Location ●Solunar Forecast Calendar, Fishing Notes, Camera, Social Media Sharing enabled ●Classic and Day/Night Screen Color Mode ●Sleep feature to pause battery use when in water (low power consumption mode) Wi-Fi Advantage Deeper Smart Sonar PRO+ uses Wi-Fi to transfer more accurate data to your device. No cellular signal nor data usage is required. Wi-Fi connection range reach up to 330ft/100 m

Device connectivity

Wireless Wi-Fi connection

Mudeli number

Smart Fishfinder Sonar Pro+, Wifi+GPS for iOS, Android

Accessories

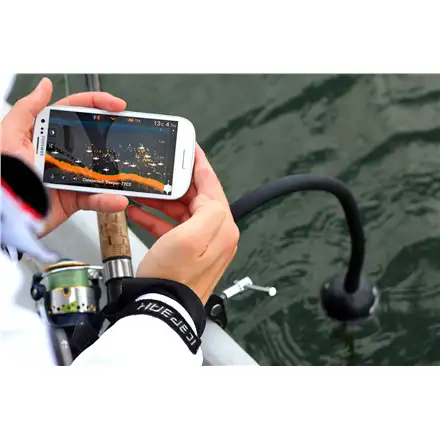

Flexible Arm, Deeper mobile holder, Deeper Night fishing cap (accessories not included).

Battery type

Li-Polymer, 3.7 V

Connectivity

Wireless Wi-Fi connection

Contents

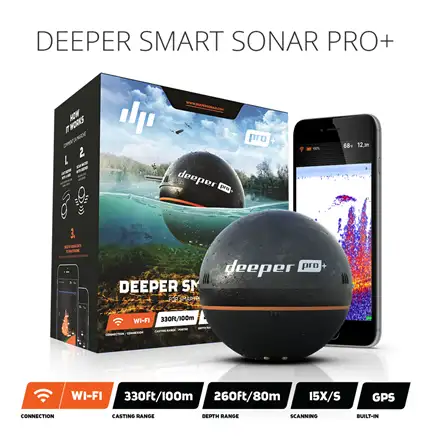

Deeper sonar PRO+, USB cable, neoprene pouch, two screws, short user manual for safe use.

Diameter

65 mm mm

Frequency

290 kHz (15°) / 90 kHz (55°)

Frequency range

290 kHz (15°)/90 kHz (55°)

Operating range

100 meters

Operation Range

Wireless Wi-Fi connection range: Up to 330ft (100 m). Depends on the OS and smartphone model

Other

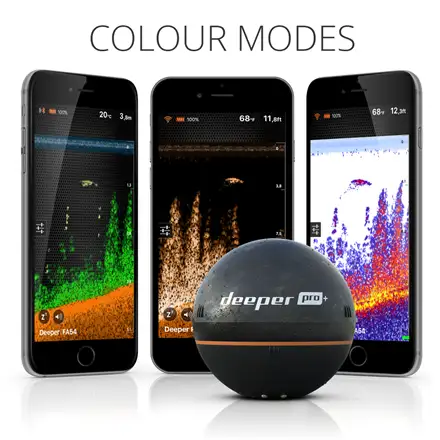

App Features: Real Time Mapping & Free Offline Maps; Unlimited Data History; Ice Fishing Mode; Depth, Temperature, Bottom Structure, Fish Location; Solunar Forecast Calendar, Fishing Notes, Camera, Social Media Sharing enabled; Classic and Day/Night Screen Color Mode; Sleep feature to pause battery use when in water (low power consumption mode).

Overall screen size (Height x Width)

Diameter 65

Short Description

Deeper Smart Sonar PRO+ is a wireless, castable echo-sounder compatible with iOS and Android smartphones and tablets. Wi-Fi connection enabled to maximize both the distance between the Deeper Smart Sonar PRO+ and the device holder up to 330ft/100 m and the depth range up to 260ft/80 m. Advanced high-frequency technology enables the Deeper Smart Sonar PRO+ to quickly transfer more accurate data. The higher scanning frequency allows the device to capture faster moving objects and the scanning resolution measures smallest of objects – all to deliver the highest quality echo-sounder data available in a single, compact wireless unit. The Onshore GPS Mode enables Deeper Smart Sonar PRO+ to produce bathymetric – bottom contour maps, while onshore or off. This advanced bathymetric technology allows users to gather and process bottom contour data while fishing from the dock, bridge, shore, kayak, float tube, boat – and even while wading in the stream – all at a distance of up to 330ft/100 m away from the Deeper Smart Sonar PRO+. This breakthrough technology enables users to gain a complete knowledge of the entire bottom contour of the water body in any fishing condition. The Deeper Smart Sonar PRO+ is the most valuable addition to your fishing gear. It is designed to scan the entire water column and mark fish, measure depth, temperature, bottom structure and other valuable data points that are essential for productive fishing – then stream that information instantaneously to your smartphone or tablet. The Deeper App offers advanced features such as Real Time Mapping, Unlimited Data History and Ice Fishing Mode to make your Deeper Smart Sonar PRO+ useful for all fishing conditions.

Tehnilised andmed

Netokaal

0.19 kg

Brutokaal

0.33 kg

Sügavus

260 ft (80 m) / wide angle - 4.3 ft (1.3 m); narrow angle - 2 ft (0.5 m)

Mõõtmed (l x s x k)

65 mm diameter

Toote kaal

100 g
