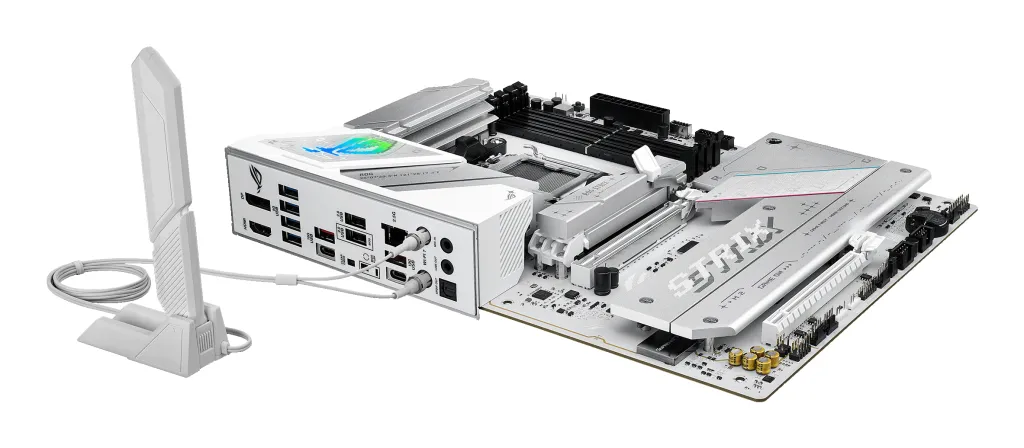

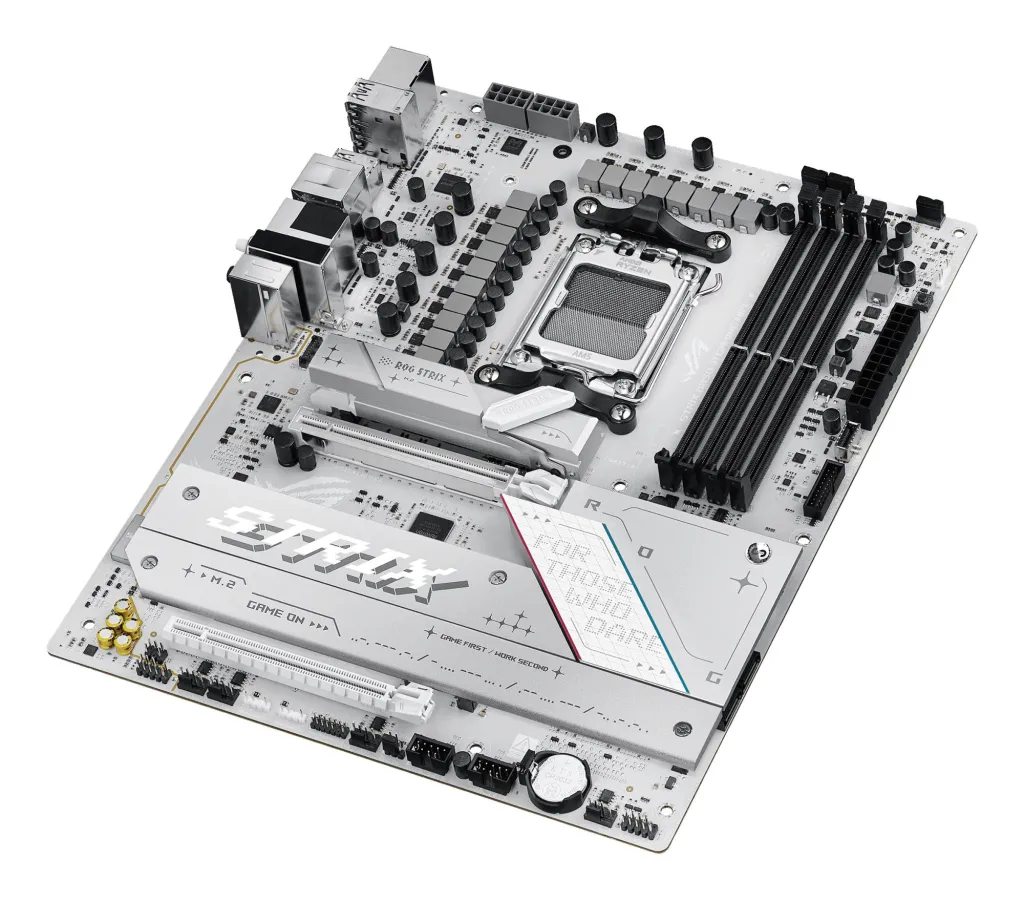

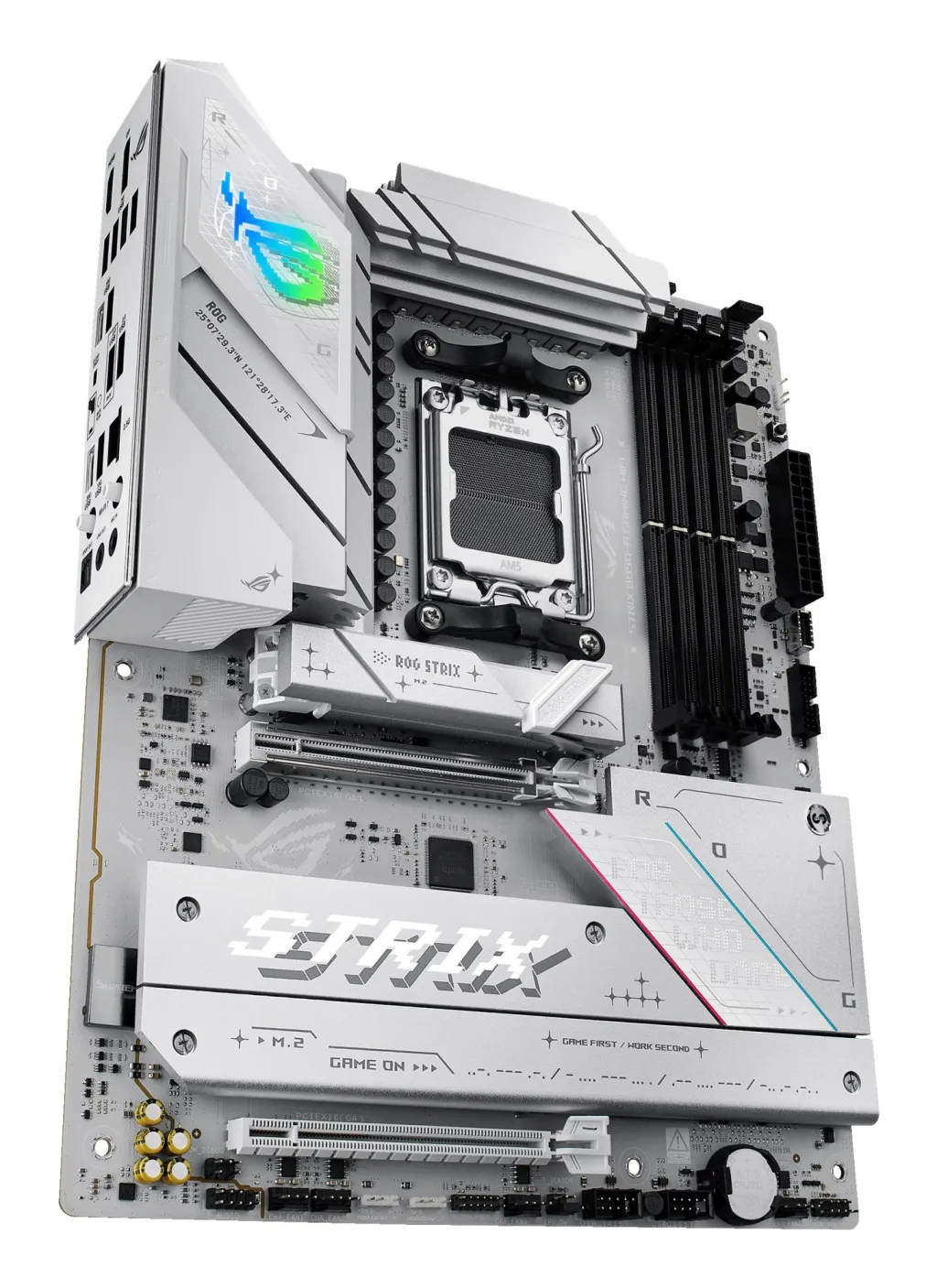

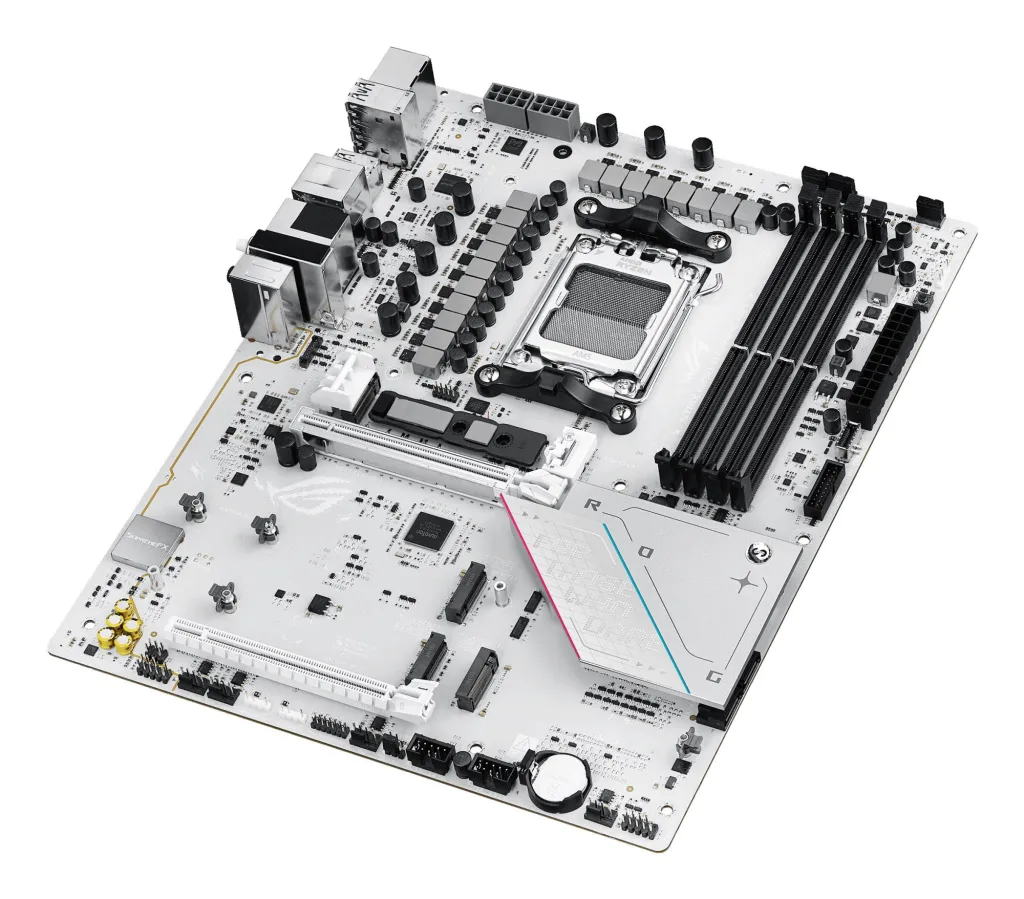

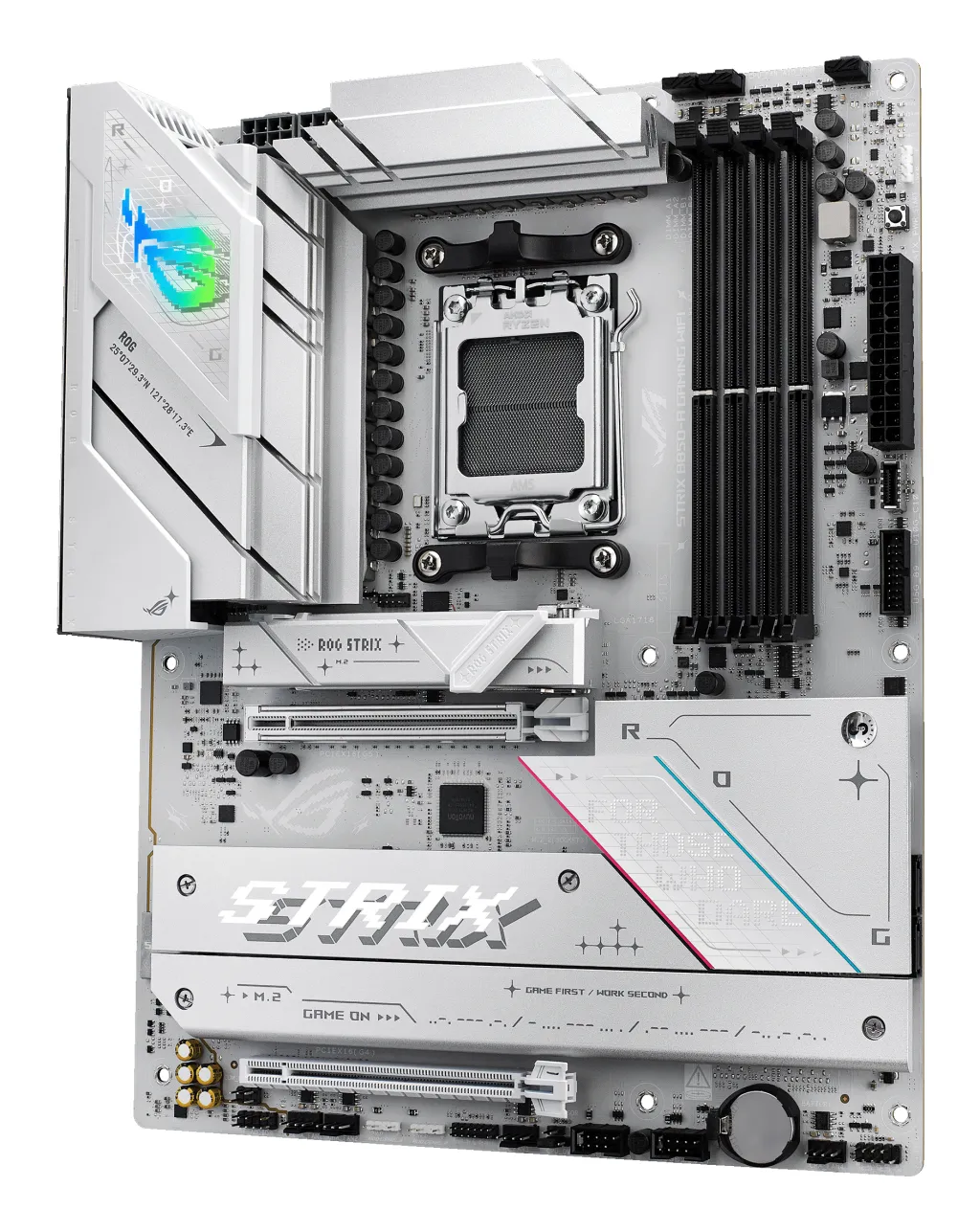

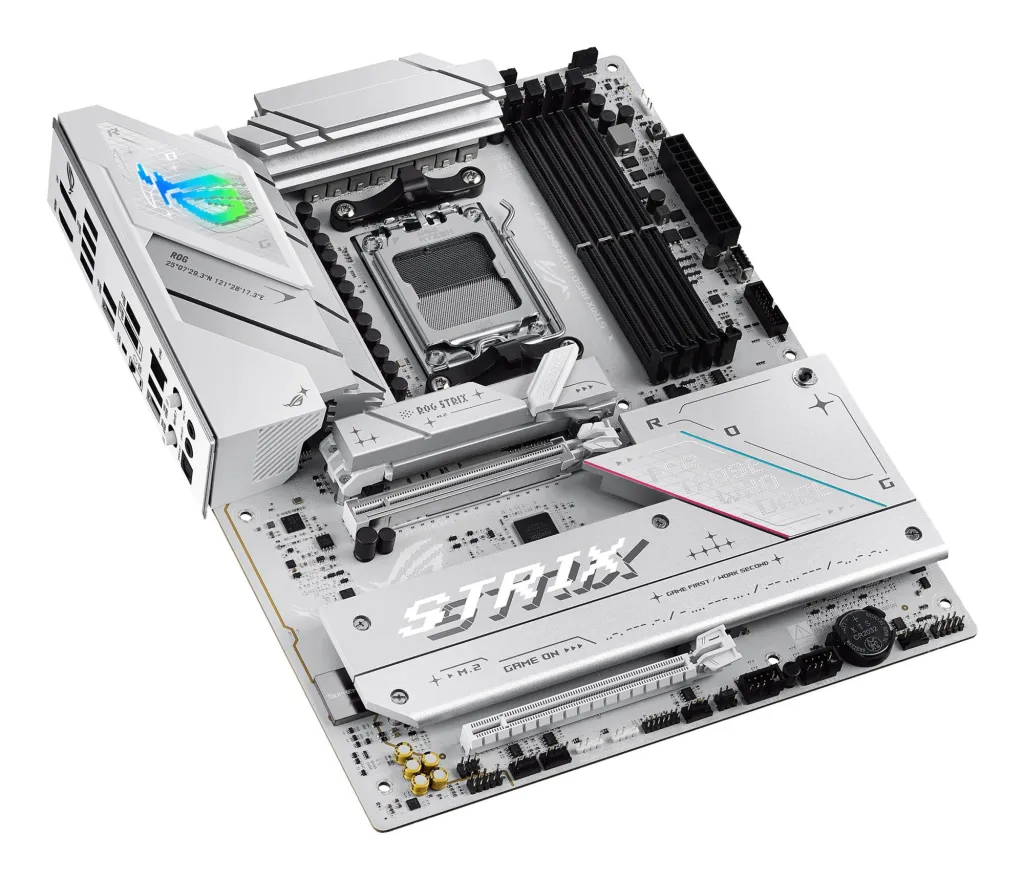

ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Protsessoripesa AM5 ATX

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

4

S/PDIF out port

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

2

Parallel processing technology support

Not supported

Clear CMOS button

Jah

Number of M.2 (M) slots

4

Line-in

Jah

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

AMD

Antenna included

Jah

RGB LED pin header

Jah

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.274

Unit Box Length

0.358

Unit Box Width

0.071

CnCode

84733020

ECC сompatibility

ECC & Non-ECC

Unit Calculated Volume

0.008131 cubm

Unit Calculated Weight

2.44 kg

Summary

ASUS ROG STRIX B850-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC4080

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Jah

Number of temperature sensor headers

1

DisplayPort versioon

1.4

Kogus transpordikasti kohta

4

Toote värv

White

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

Component for

PC

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Tootja koduleht

https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-a-gaming-wifi/

Transpordipakendi kaal

9.75 kg

Transpordipakendi kõrgus

29.3 cm

Transpordipakendi laius

30 cm

Transpordipakendi sügavus

37 cm

Tarvikud kaasa arvatud

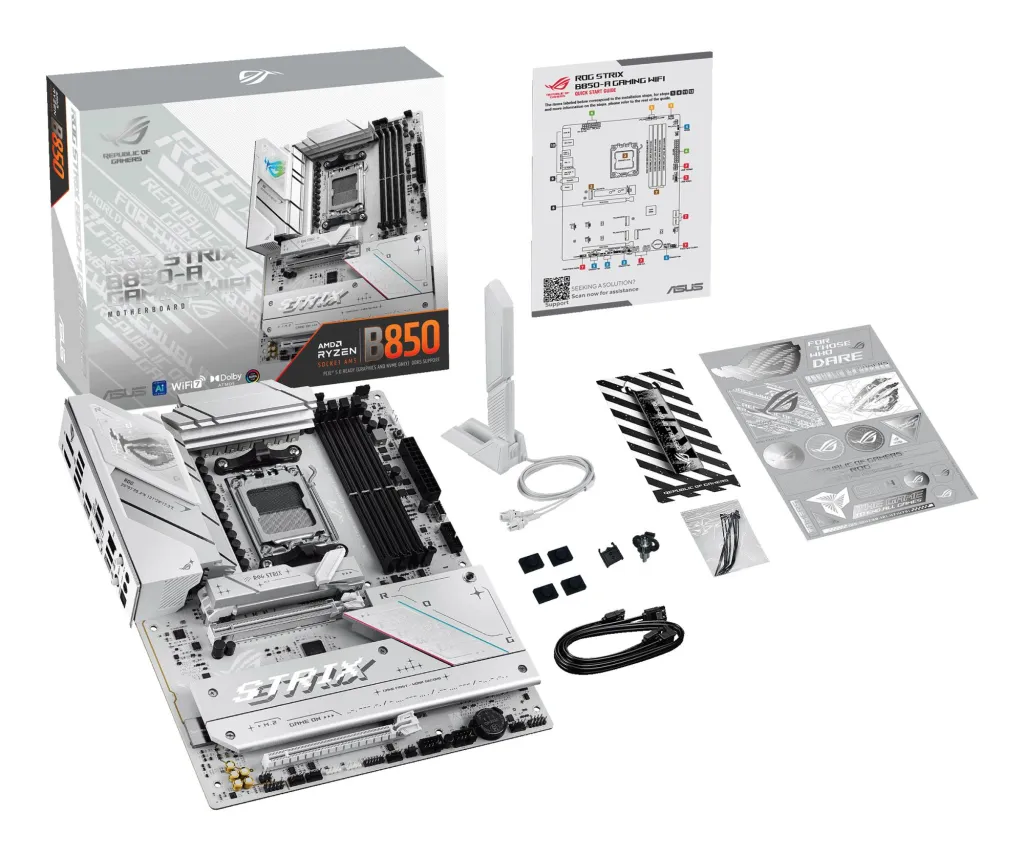

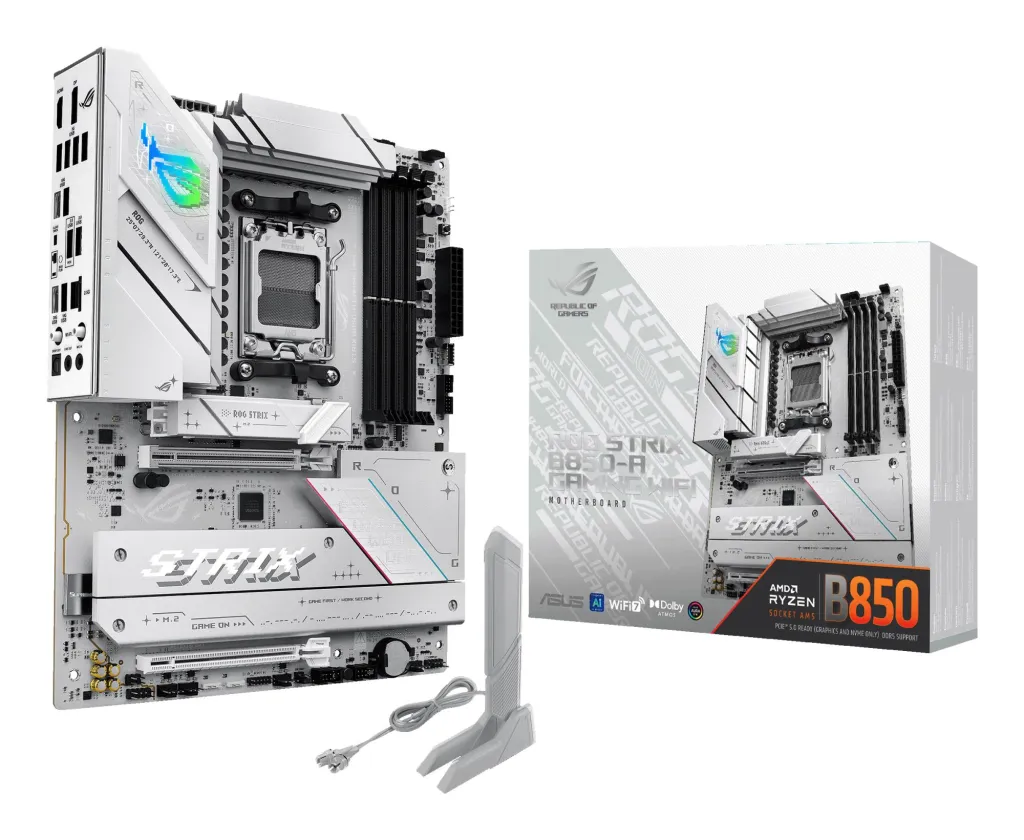

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick start guide

Toote kaal

2040 g

Digital audio optical out

1

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

2.1

Headphone outputs

1

Motherboard chipset

AMD B850

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 11

BIOS memory size

256 Mbit

DisplayPort

1

Mudel

ROG STRIX B850-A GAMING WIFI

Number of memory slots

4

Optical S/PDIF

1

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Pakendi kaal

2040 g

Pakendi laius

353 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10/5

USB 2.0 connectors

2

USB-C

Jah
