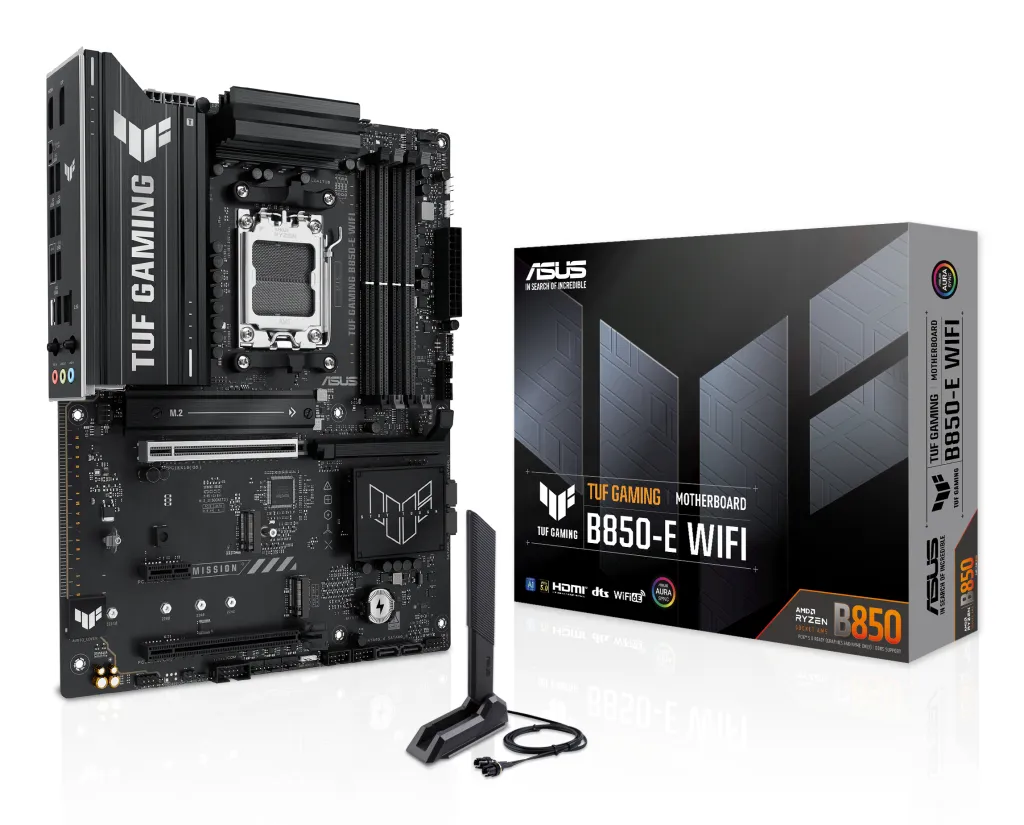

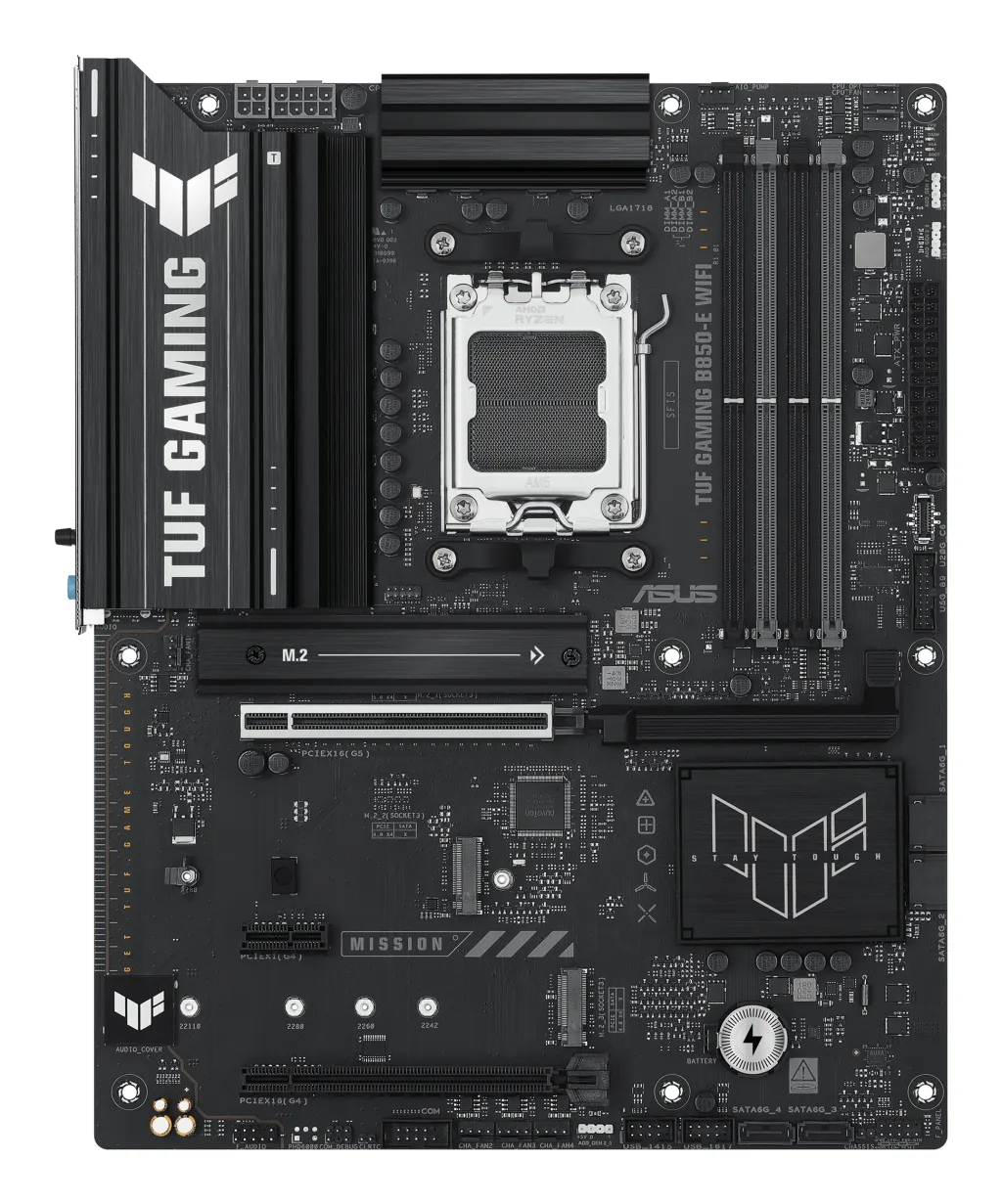

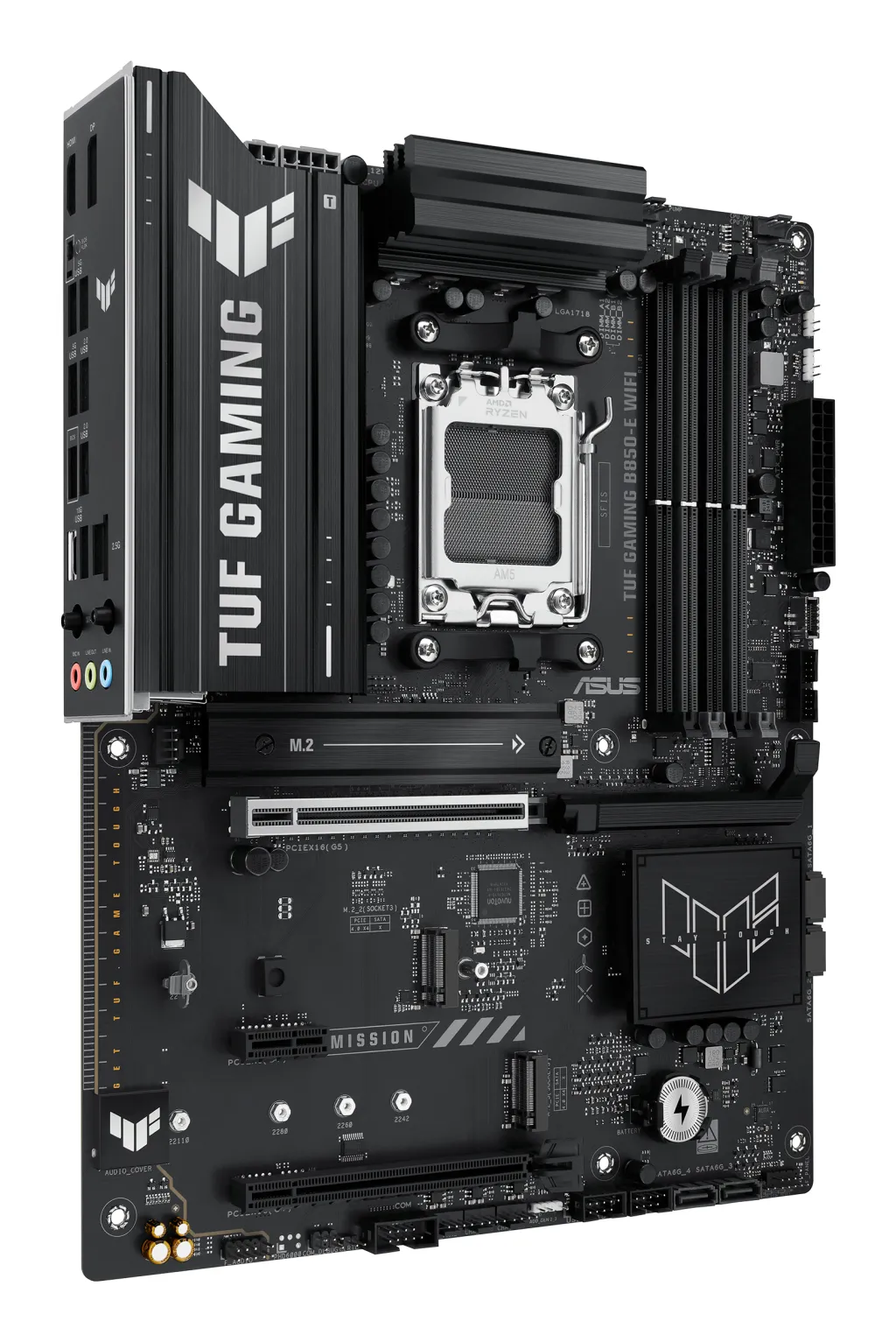

ASUS TUF GAMING B850-E WIFI AMD B850 Protsessoripesa AM5 ATX

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

4

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Number of M.2 (M) slots

3

Line-in

Jah

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

AMD

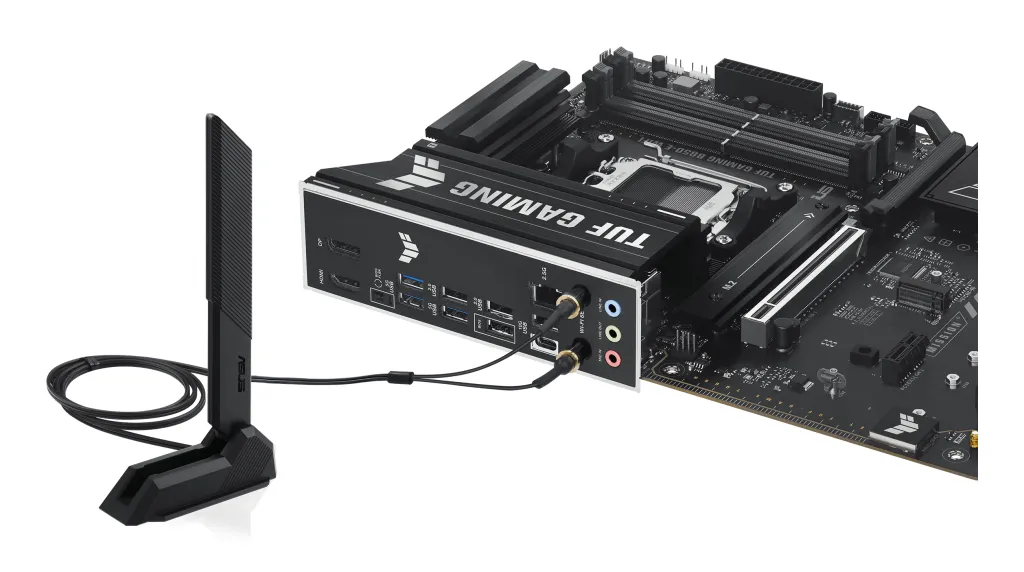

Antenna included

Jah

RGB LED pin header

Jah

USB 3.2

4

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI-Express 4.0 1x

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.275

Unit Box Length

0.36

Unit Box Width

0.07

CnCode

84733020

ECC сompatibility

ECC & Non-ECC

Unit Calculated Volume

0.008436 cubm

Unit Calculated Weight

2 kg

Summary

ASUS TUF GAMING B850-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Jah

Front panel connector

Jah

PCI Express x1 (Gen 4.x) slots

1

USB 3.2 Gen 2x2 connectors

1

Kogus transpordikasti kohta

5

Toote värv

Multicolour

Number of CPU fan connectors

1

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

Component for

PC

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-e-wifi/

Transpordipakendi kaal

10 kg

Transpordipakendi kõrgus

30 cm

Transpordipakendi laius

37 cm

Transpordipakendi sügavus

38 cm

Kõrgus

48 mm

Tarvikud kaasa arvatud

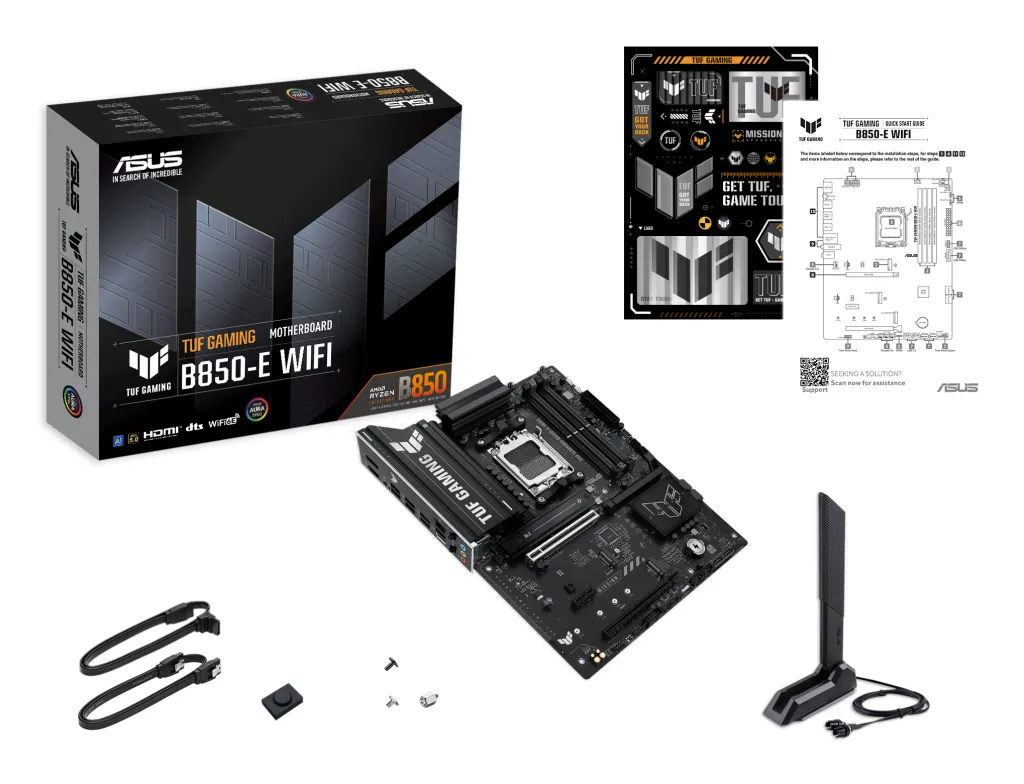

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF Gaming sticker 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide

Toote kaal

1210 g

Jahutuse tüüp

Passive

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Microphone in

Jah

Motherboard chipset

AMD B850

RAID support

Jah

Unbuffered memory

Jah

USB connector type

USB Type-A/USB Type-C

Windows operating systems supported

Windows 10 x64/Windows 11

BIOS memory size

256 Mbit

DisplayPort

1

Mudel

TUF GAMING B850-E WIFI

Number of memory slots

4

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Pakendi kaal

1780 g

Pakendi laius

353 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10/5

USB 2.0 connectors

2

USB-C

1
