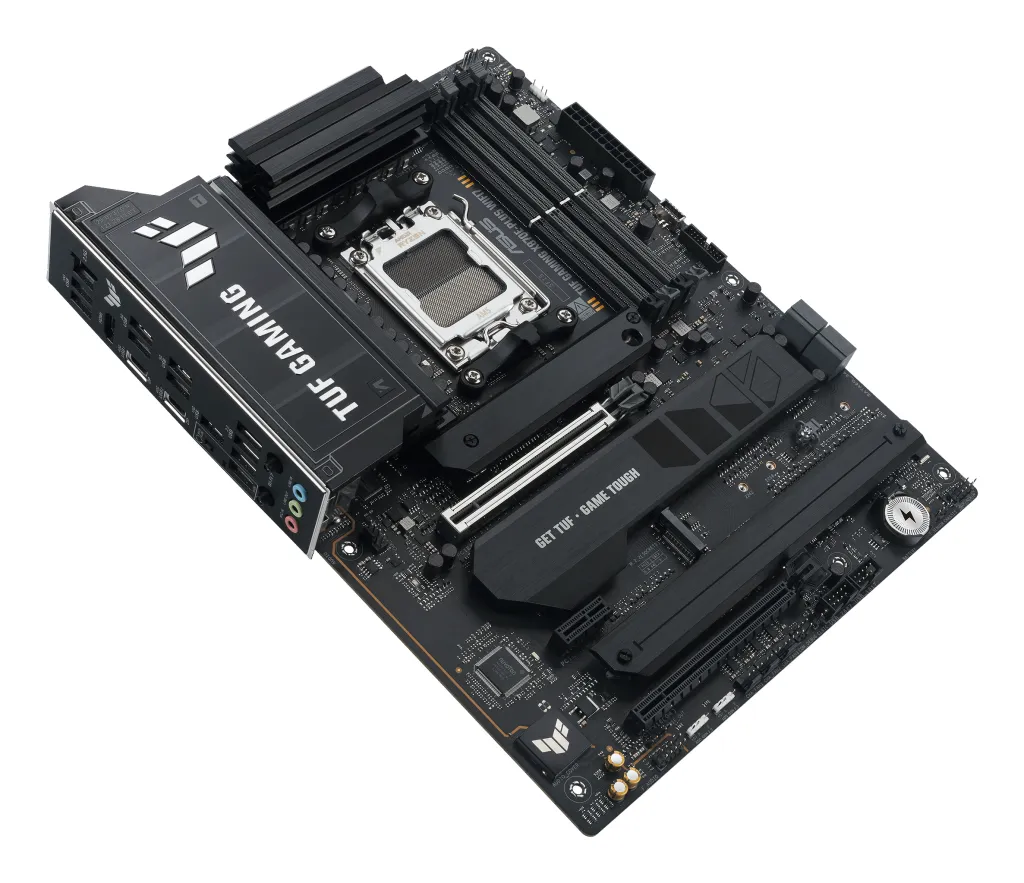

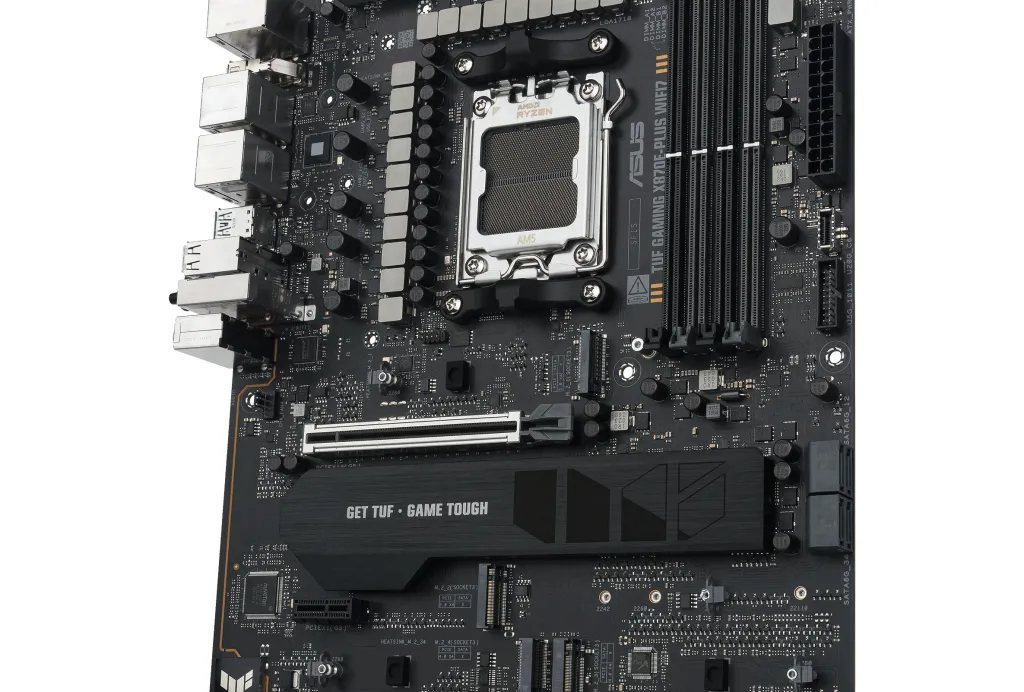

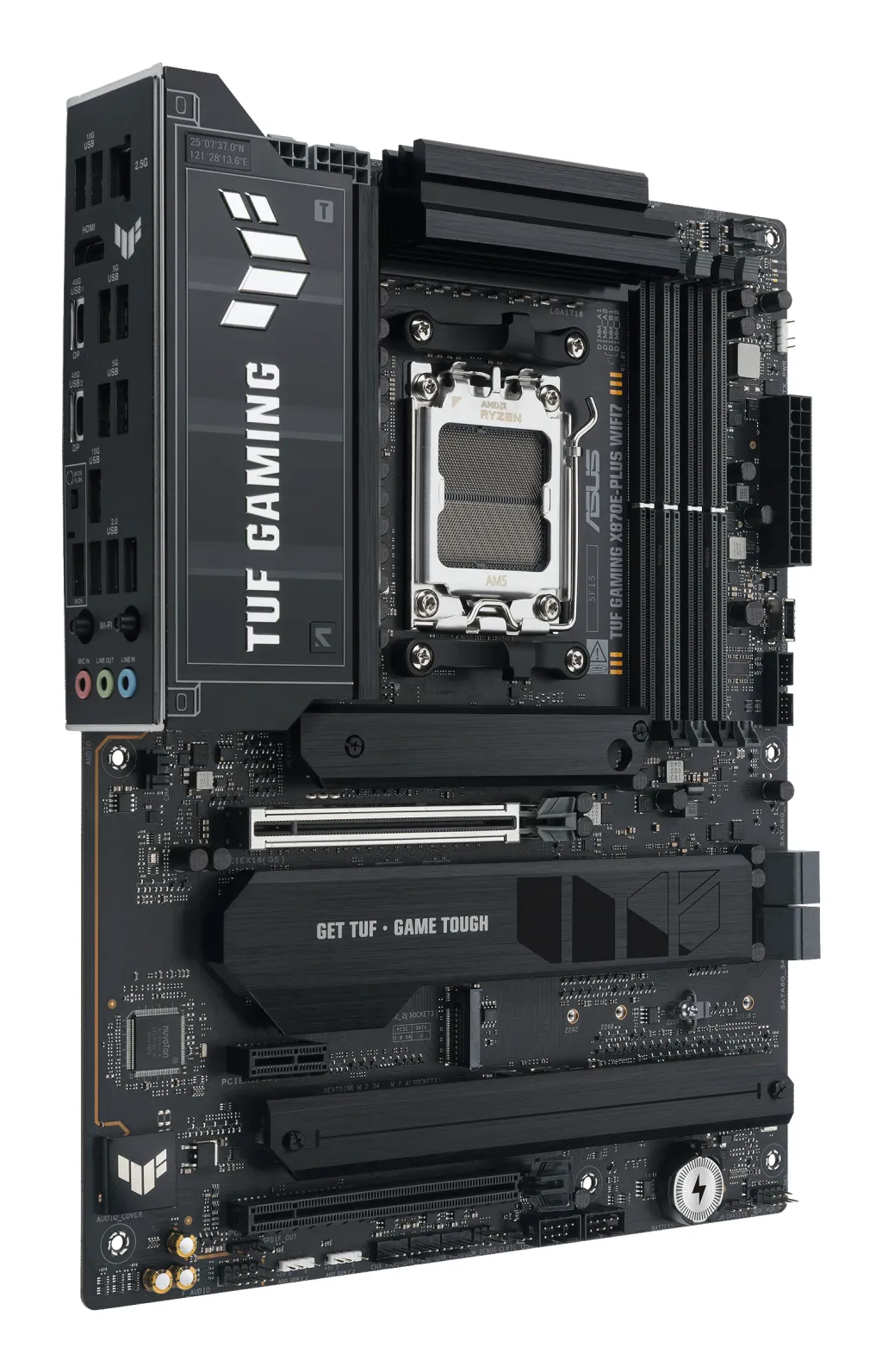

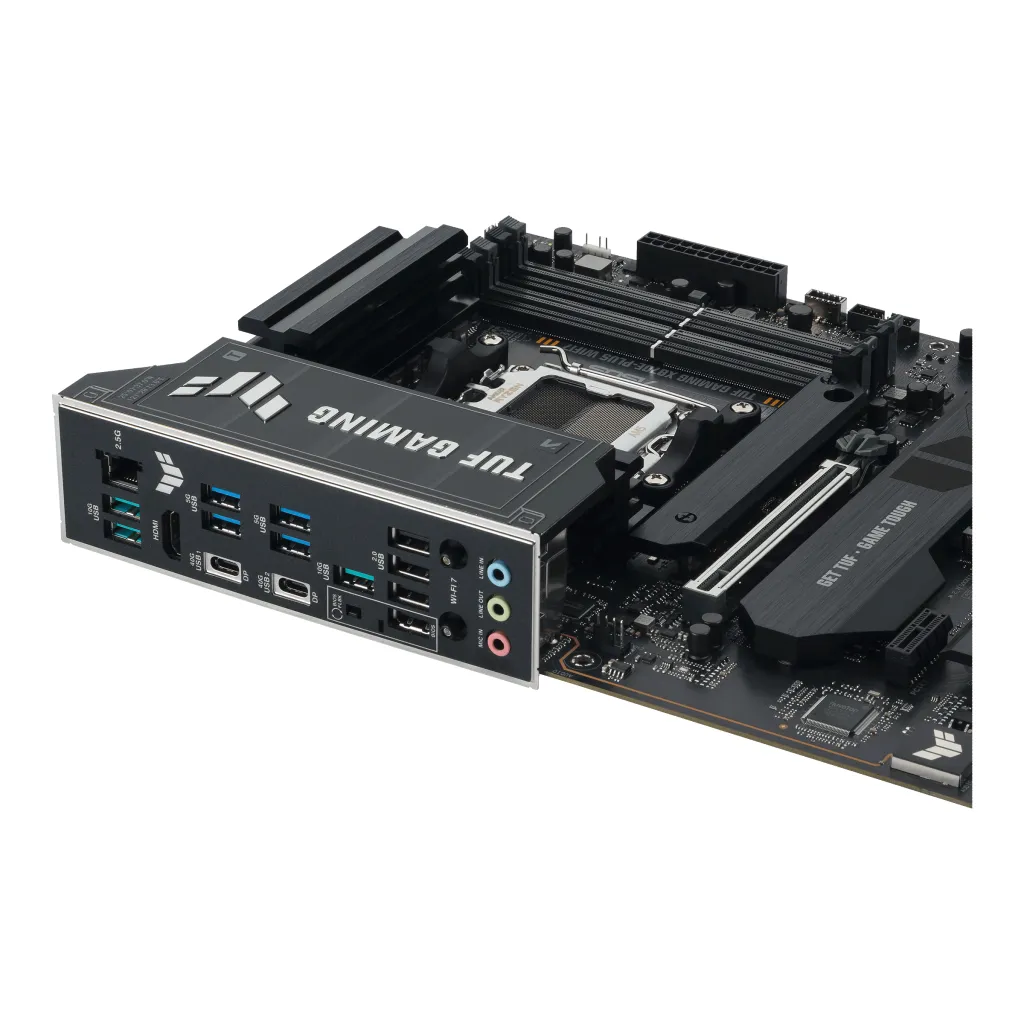

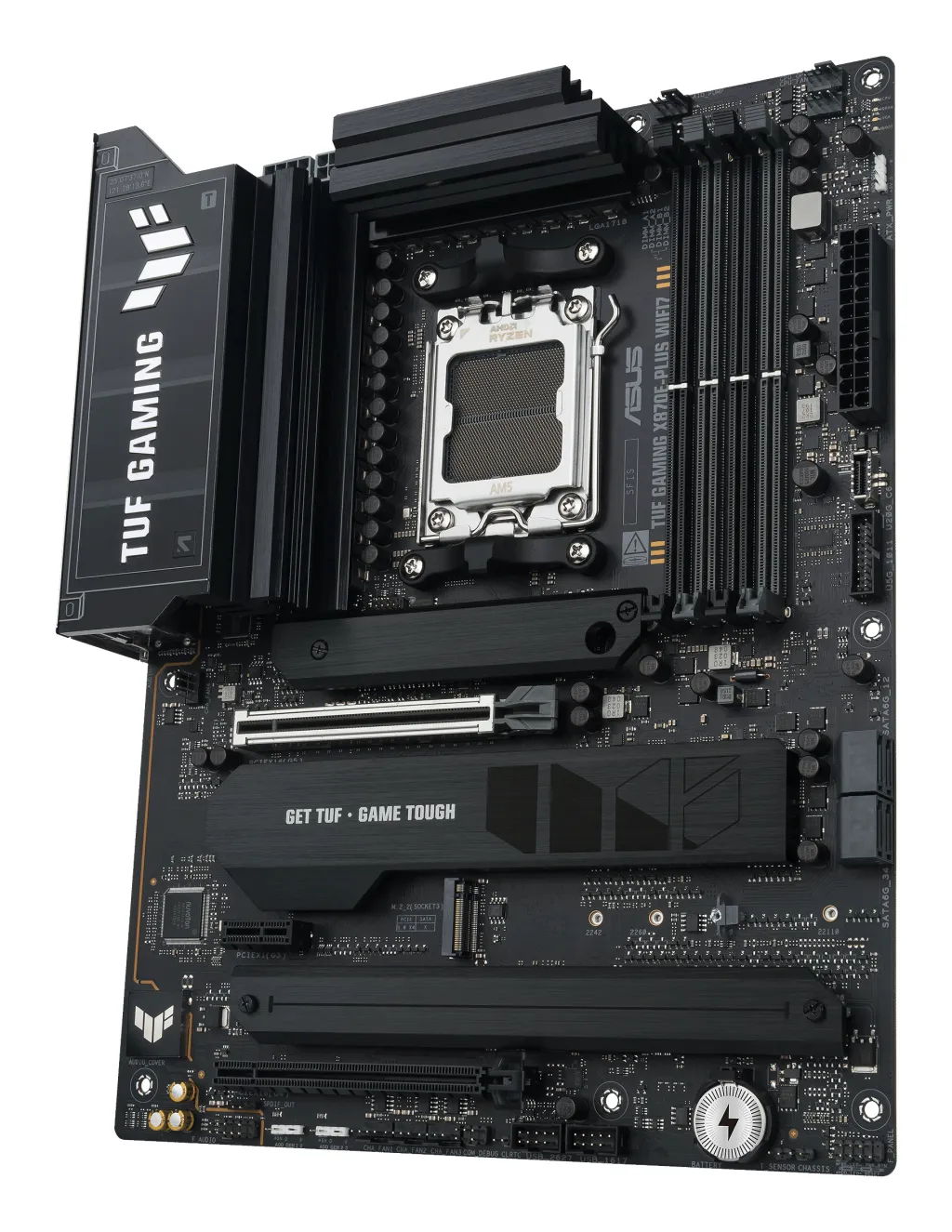

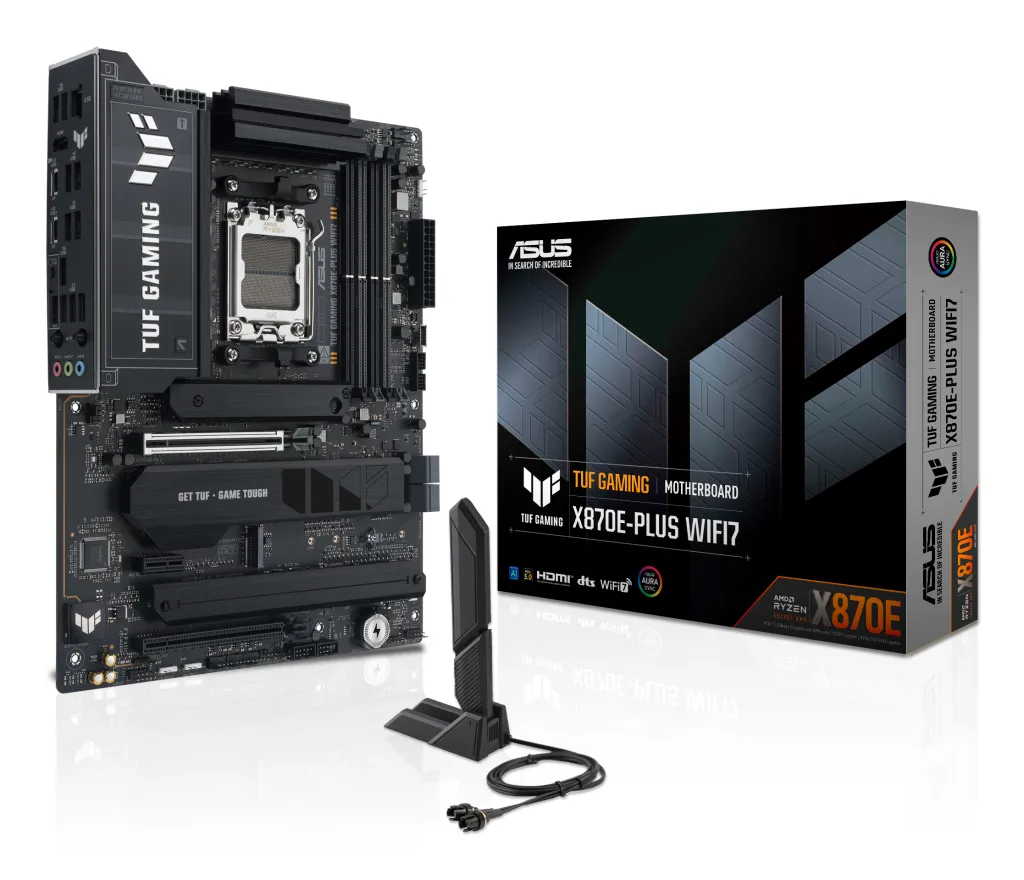

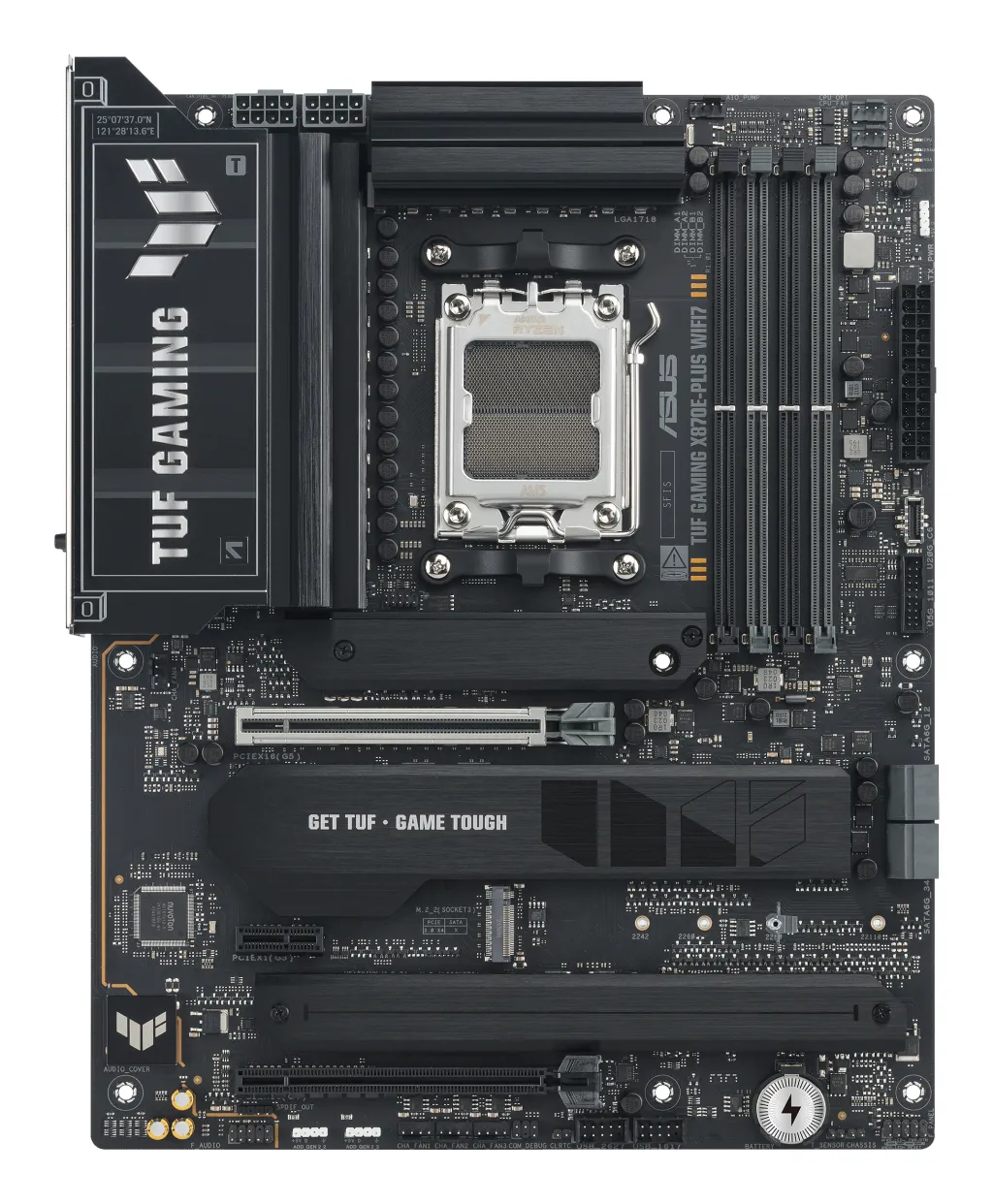

ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Protsessoripesa AM5 ATX

Muud näitajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

4

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Number of M.2 (M) slots

4

Line-in

Jah

Number of storage drives supported

8

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Screws included

Jah

Processor manufacturer

AMD

Antenna included

Jah

RGB LED pin header

Jah

USB 3.2

7

PCI-Express 4.0 16x

1

PCI Express x16 (Gen 4.x) slots

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.07

Unit Box Length

0.355

Unit Box Width

0.275

CnCode

84733020

ECC сompatibility

ECC & Non-ECC

Unit Calculated Volume

0.008325 cubm

Unit Calculated Weight

2.45 kg

Summary

ASUS TUF GAMING X870E-PLUS WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

12V power connector

Jah

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Jah

Number of temperature sensor headers

1

Kogus transpordikasti kohta

4

Toote värv

Grey

USB4 Gen 3x2 ports quantity

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

2

Number of water pump connectors

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

Component for

PC

2nd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Tootja koduleht

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870e-plus-wifi7/

Kõrgus

48 mm

Tarvikud kaasa arvatud

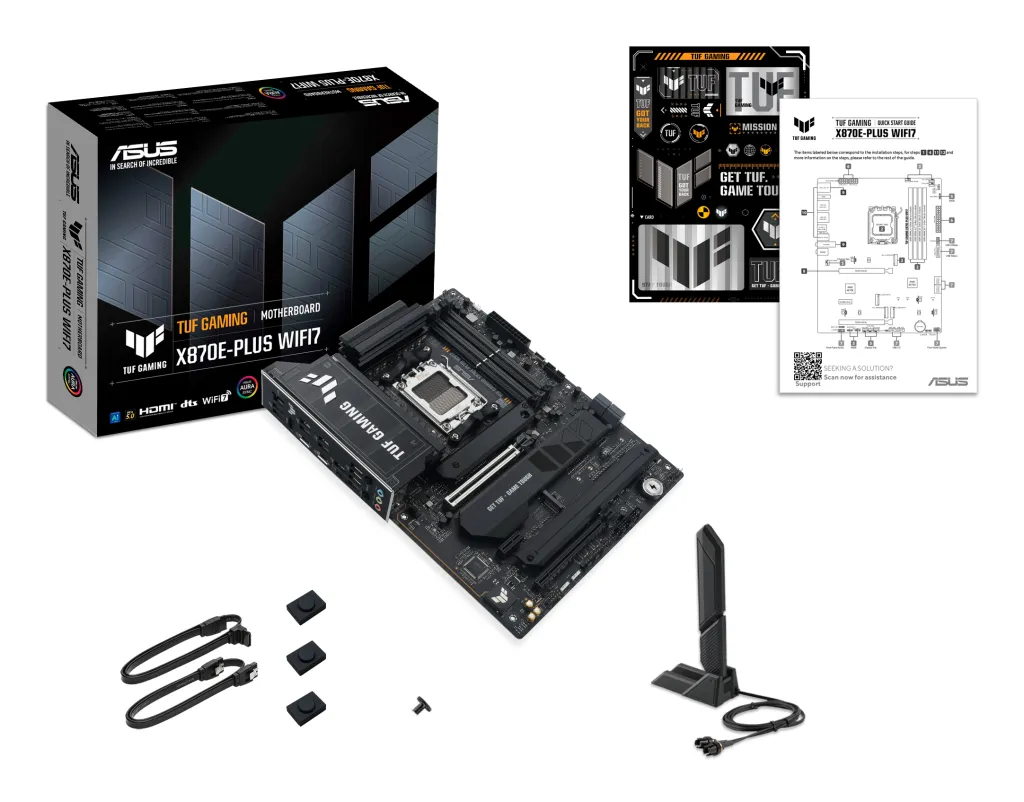

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide

Toote kaal

1560 g

Jahutuse tüüp

Passive

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD X870E

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 11

BIOS memory size

256 Mbit

Mudel

TUF GAMING X870E-PLUS WIFI7

Number of memory slots

4

Pakendi sügavus

273 mm

Pakendi kõrgus

68 mm

Pakendi kaal

2080 g

Pakendi laius

353 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10/5

USB 2.0 connectors

2

USB-C

2
