ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Protsessoripesa AM5 ATX
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 13.25 €. Taotle järelmaksu ostukorvis.
ASUS ROG STRIX X870E-H GAMING WIFI7. Protsessori tootja: AMD, Protsessori pesa: Protsessoripesa AM5, Ühilduvad protsessoriseeriad: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Toetatud mälutüübid: DDR5-SDRAM, Maksimaalne sisemälu: 256 GB, Mälupesa tüüp: DIMM. Kõvaketta ühenduse tüüp: M.2, SATA III, Toetatud ketaste tüübid: HDD & SSD, RAID-tasemed: 0, 1, 10, 5. Ethernet-liidese tüüp: 5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11be), WiFi-standardid: Wi-Fi 7 (802.11be). Komponent: PC, Emaplaadi kujutegur: ATX, Emaplaadi kiibistik: AMD
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD X870E
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC1220P
- Audioväljundi kanalid
- 2
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- WiFi-standardid
- Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Kõvaketta tugi
- M.2 (M) siinide arv
- 4
- RAID
- SATA 0, 1, 5, 10

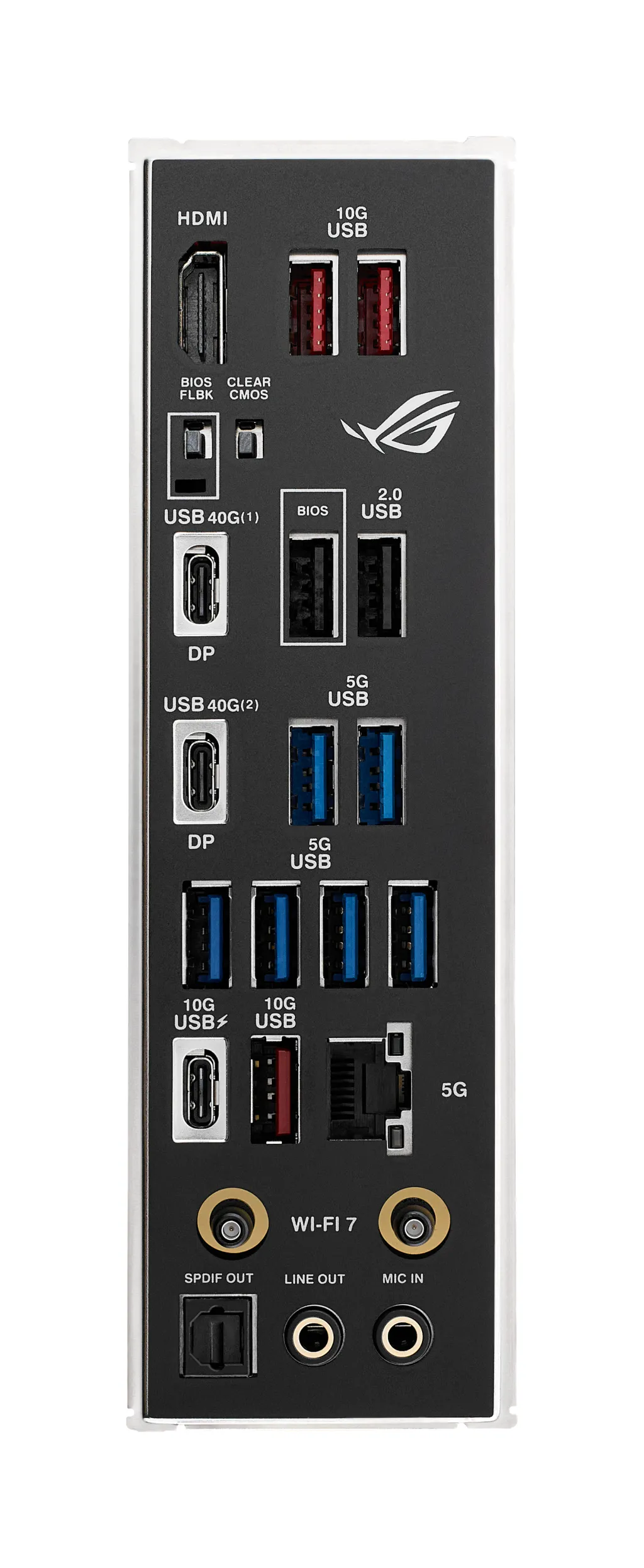

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Netokaal
- 1 kg
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 5
- Chassis intrusion connector
- Jah
- S/PDIF out port
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Number of M.2 (M) slots
- 4
- Number of storage drives supported
- 8
- Supported storage drive types
- HDD & SSD
- WiFi-AP antenna jack
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- Antenna included
- Jah
- RGB LED pin header
- Jah
- USB 3.2
- 9
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 1
- Unit Box Height
- 0.07
- Unit Box Length
- 0.275
- Unit Box Width
- 0.36
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Unit Calculated Volume
- 0.008186 cubm
- Unit Calculated Weight
- 2.56 kg
- Summary
- ASUS ROG STRIX X870E-H GAMING WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC1220P
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- 12V power connector
- Jah
- Front panel connector
- Jah
- USB 3.2 Gen 2x2 connectors
- 1
- Number of temperature sensor headers
- 1
- Kogus transpordikasti kohta
- 4
- Toote värv
- Black
- USB4 Gen 3x2 ports quantity
- 2
- Number of RGB LED pin headers
- 3
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 4.0
- Tootja koduleht
- https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7/
- Tarvikud kaasa arvatud
- Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber Documentation 1 x Quick start guide
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD X870E
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11
- BIOS memory size
- 256 Mbit
- Mudel
- ROG STRIX X870E-H GAMING WIFI7
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Pakendi sügavus
- 273 mm
- Pakendi kõrgus
- 68 mm
- Pakendi kaal
- 2071 g
- Pakendi laius
- 353 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10/5
- USB 2.0 connectors
- 2
- USB-C
- Jah
