Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Tootja | GIGABYTE |
| Tootekood | B650M D3HP 1.3 |
| EAN | 4719331857851 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B650 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 2933/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 256 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

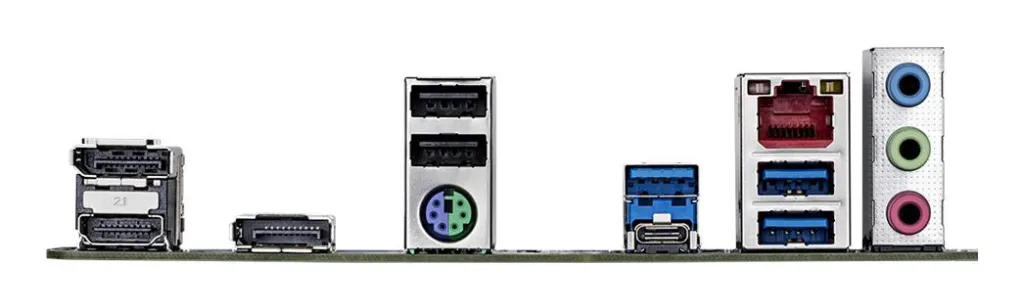

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Muud näitajad | |
| DisplayPort version | 1.4 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0 |
| Number of M.2 (M) slots | 2 |
| Line-in | Jah |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Discrete graphics support | Jah |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Supported storage drive interfaces | M.2,SATA III |
| Screws included | Jah |
| Processor manufacturer | AMD |
| System management BIOS (SMBIOS) version | 2.7 |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 4.0 8x | 1 |
| Supported memory clock speed (max) | 7600 MHz |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| CnCode | 84733020 |
| Warranty period | 3 year(s) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004669 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.06 kg |

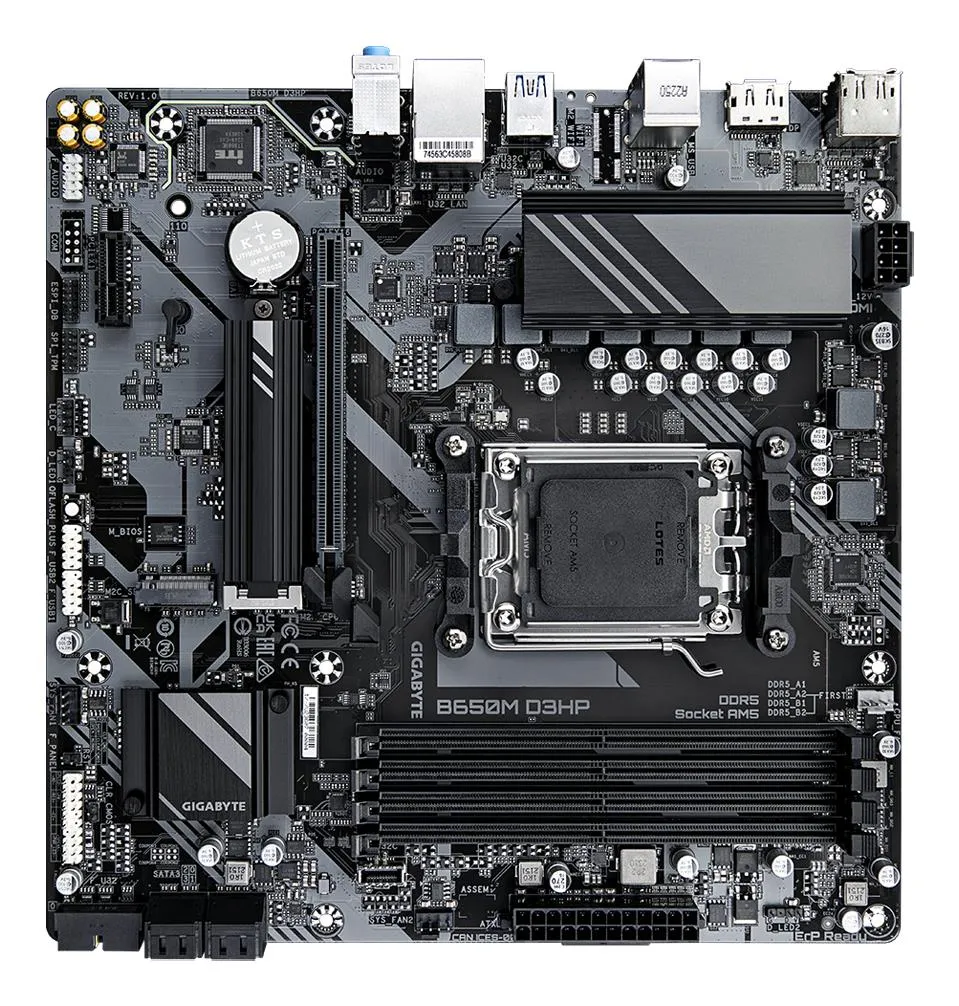

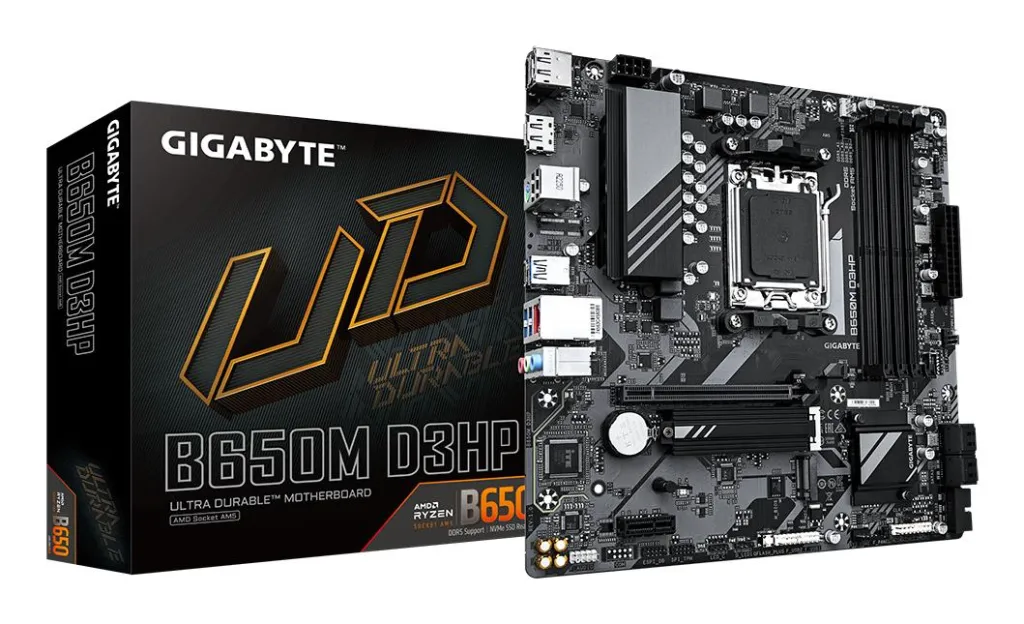

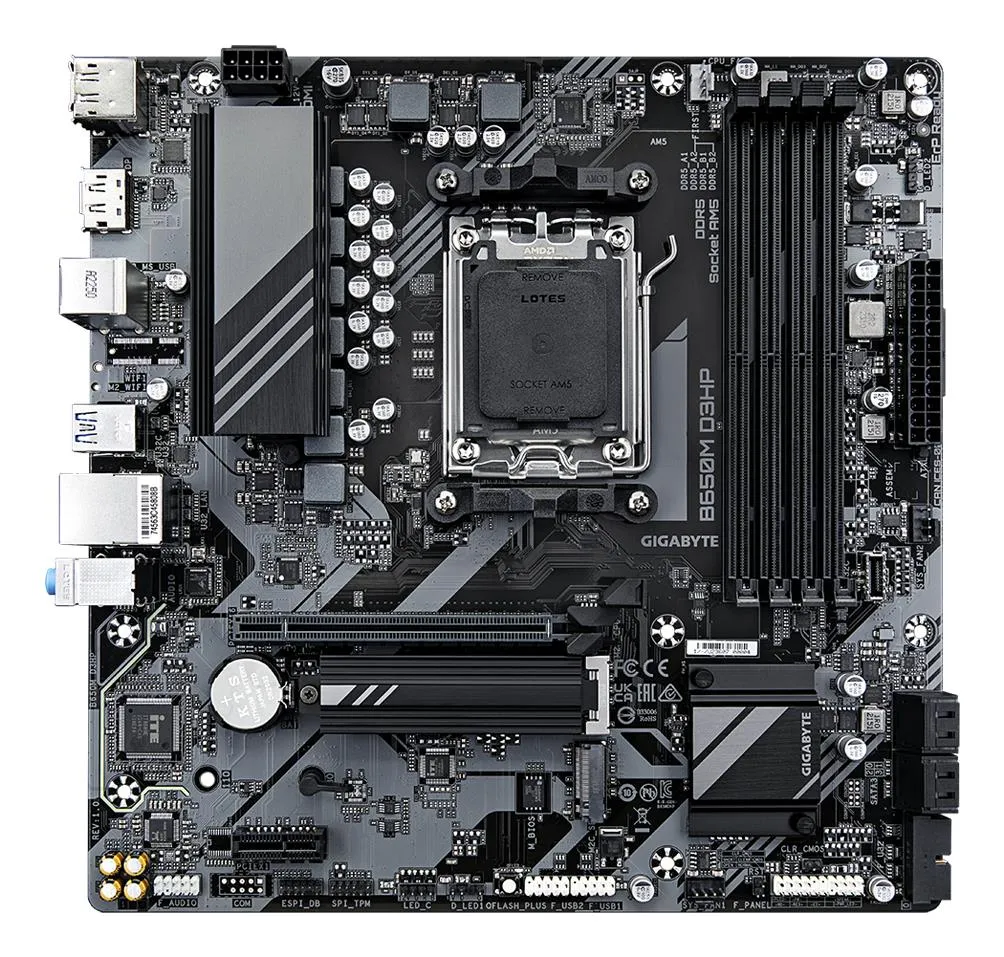

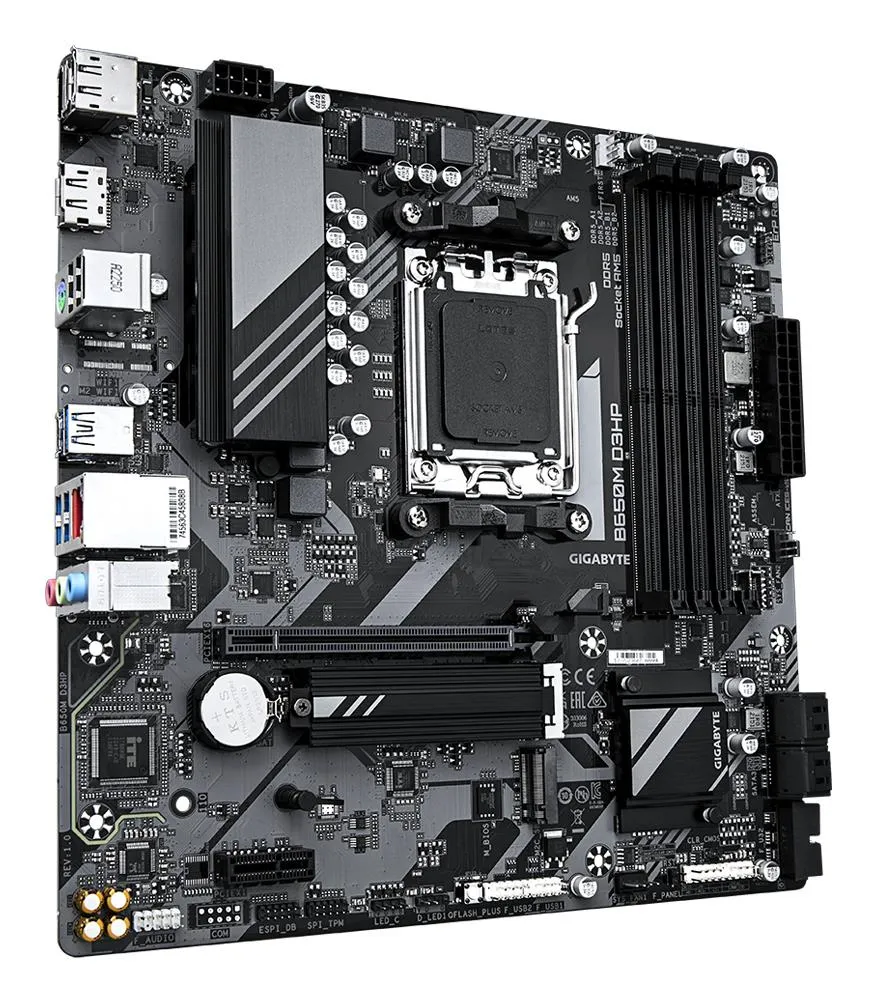

| Summary | GIGABYTE B650M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125 |
| Product colour | Brown |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Products per shipping (inner) case | 1 pc(s) |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| PC health monitoring | Fan/Temperature/Voltage |
| Desktop Management Interface (DMI) version | 2.7 |
| 12V power connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Jah |
| Lithium weight per battery | 0.07 g |
| Number of CPU fan connectors | 1 |
| Kaasas tarkvara | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Akuelementide arv | 1 |
| Akutehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Maksimaalne resolutsioon | 4096 x 2160 pixels |
| HDCP | Jah |
| Tootja koduleht | https://www.gigabyte.com/ |
| Kõrgus | 35 mm |
| Country of origin | China |
| DirectX version | 12.0 |
| DisplayPorts quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B650 |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Batteries Included | Jah |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 256 Mbit |
| DisplayPort | 2 |
| LAN controller | Realtek RTL8125 |
| Mudel | B650M D3HP (rev. 1.3) |
| Number of memory slots | 4 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1020 g |
| Package width | 265 mm |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
| USB 2.0 connectors | 2 |
| USB-C | Jah |
