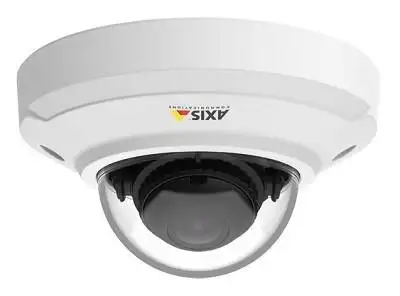

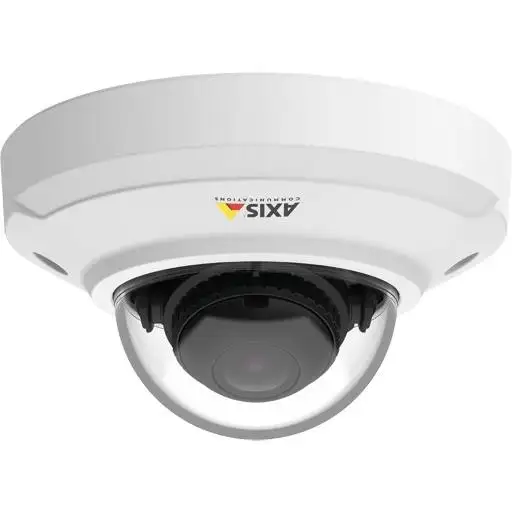

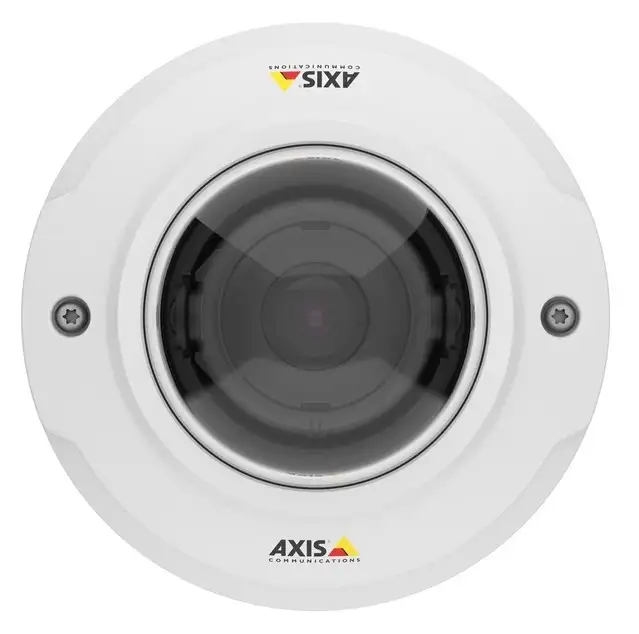

NET CAMERA M3046-V H.264/MINI DOME 0806-001 AXIS
Toode on hetkel läbimüüdud!
Kuvame toote info vaid informatiivsel eesmärgil
Quad HD / 4 MP, AXIS M3046-V provides exceptional video quality at an affordable price. AXIS M3046-V is perfect for stores, hotels, schools, banks and offices. And it features an HDMI output for live streaming to a public monitor.
AXIS M3046-V gives you sharp Quad HD video quality. It provides a horizontal field of view of 128°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.
Sharp images. Low bandwidth
Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.
See the big picture – and the details – with a single camera
Thanks to digital pan/tilt/zoom (PTZ) capabilities and multi-view streaming, AXIS M3046-V lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera, which keeps installation and maintenance time and costs low, plus minimizes bandwidth and storage needs. AXIS M3046-V can also be used as an alternative to a camera with varifocal lens – its 4MP resolution and digital PTZ capability enable sharp, cropped out views in HDTV 1080p, for example, with a horizontal field of view between 95° and 128°.
Live streaming to a public monitor
AXIS M3046-V features an HDMI output that lets you connect your network cameras to a public monitor to show you have video surveillance in place.

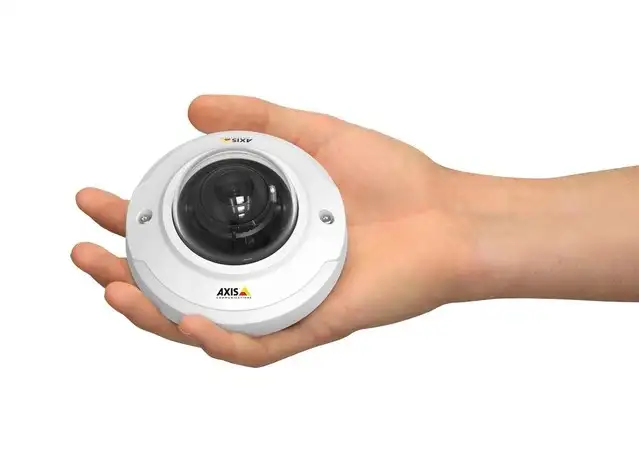

Fits in your hand – fits in anywhere
Small and compact, AXIS M3046-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.
Installation that’s as easy as 1, 2, 3
To keep implementation costs low, AXIS M3046-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3046-V is also vandal and dust resistant for optimal performance and minimal downtime.
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.axis.com/global/en/products/axis-m3046-v
.: Üldised omadused :.
- Välkmälu
- 256 MB
.: Disain :.
- Toote värv
- White
- Kujutegur
- Dome
.: Mälu :.
- Integreeritud kaardilugeja
- Jah
- Ühilduvad mälukaardid
- MicroSD (TransFlash)/MicroSDHC/MicroSDXC
- Paigaldatud operatiivmälu
- 512 MB
.: Kaamera :.
- Lens viewing angle, vertical
- 69 °
- Valge tasakaalustus
- Auto
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
- WiFi
- Ei
- Ethernet LAN
- Jah
.: Pesad & liidesed :.
- HDMI-portide arv
- 1
- Ethernet LAN (RJ-45) pordid
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- PoE
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
- Võimsustarve (tüüpiline)
- 2.8 W
Turvalisus
- Turvaalgoritmid
- 802.1x RADIUS/HTTPS/SSH/SSL/TLS
Pildisensor
- Progressiivne skaneerimine
- Jah
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Veebipõhine haldus
- Jah
Objektiivi süsteem
- Lens viewing angle, horizontal
- 128 °
Öövaatluse funktsioon
- Öönägemine
- Ei
Ergonoomika
- Pöördenurga ulatus
- 352 °
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 2688 x 1520/320 x 240
Töötingimused
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 15 - 85 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- Kiirpaigaldusjuhend
- Jah
- Kaasas tarkvara
- AXIS Camera Companion, AXIS Camera Station, Video management software
- Tarvikud kaasa arvatud
- Instalation Guide, Windows decoder 1-user license, Torx L-key
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.001047 cubm
- Transpordipakendi kaal
- 0.274 kg
- Transpordipakendi kõrgus
- 7 cm
- Transpordipakendi laius
- 11.5 cm
- Transpordipakendi sügavus
- 13 cm
Tehnilised andmed
- Password protection type
- User
- Placement supported
- Indoor
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II),DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP,ARP, SOCKS, SSH
- Cabling technology
- 10/100Base-T(X)
- Number of cameras
- 1
- IP address filtering
- Jah
- Active tampering alarm
- Jah
- Wide Dynamic Range (WDR)
- Jah
- Motion sensor
- Jah
- Video motion detection
- Jah
- Screws included
- Jah
- Number of languages
- 10
- HTTPS encryption
- Jah
- Unit Box Height
- 0.07
- Unit Box Length
- 0.13
- Unit Box Width
- 0.115
- CnCode
- 85258900
- Unit Calculated Volume
- 0.001047 cubm
- Unit Calculated Weight
- 0.274 kg
- Summary
- Axis M3046-V. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.3 lx, Angle of rotation: 352°, Lens viewing angle, horizontal: 128°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 2.4 mm
- Tilt angle range
- -65 - 65 °
- Privacy masking
- Jah
- Text caption overlay
- Jah
- Iris
- Jah
- Auto-tracking
- Jah
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Languages support
- English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish
- Mounting type
- Ceiling/wall
- Protection features
- Dust resistant/Water resistant
- Sensor type
- CMOS
- Supported video modes
- 1080p/720p
- Video compression formats
- H.264/M-JPEG/MPEG4
- Windows operating systems supported
- Jah
- Built-in HDD
- Ei
- Camera shutter speed
- 1/32500 - 1/5 s
- Certification
- EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
- Connectivity Technology
- Wired
- Fixed focal length
- 2.4 mm
- Focal Length
- 2.4mm
- Focus Adjustment
- 2.2
- Housing material
- Acrylonitrile butadiene styrene (ABS)
- Lens Mount
- M12
- MicroSD Card Slot
- 1
- Min. Illumination
- 0.3 Lux
- Minimum Illumination
- 0.3 lx
- Network Camera Type
- Fixed Dome/HDTV/Megapixel/PTZ
- Operating temperature range
- 0°C to 40°C
- Optical sensor size
- 1/3 "
- Pan range
- -177 - 177 °
- Sensor size
- 1/3" progressive scan RGB CMOS
- Storage relative humidity (H-H)
- 15 - 85 %
- Total megapixels
- 4 MP
Tehnilised andmed
- Netokaal
- 0.18 kg
- Netokaal
- 0.18 kg
- Brutokaal
- 0.274 kg
- Laius
- 101 mm
- Sügavus
- 101 mm
- Kõrgus
- 56 mm
- Mõõtmed (l x s x k)
- ø101 x 56mm
- Toote kaal
- 180 g
