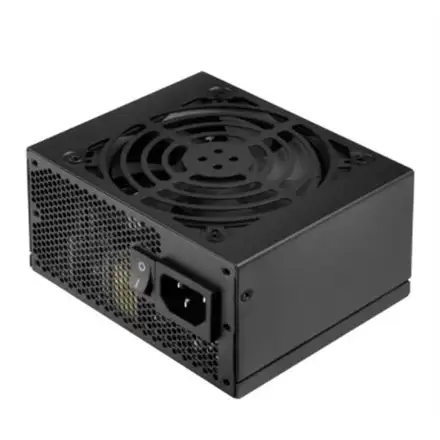

SilverStone SFX 450W PSU, 80 PLUS Bronze v 3.0 450 W, on +12V : 450 W

.: Üldised omadused :.

Müratase

18 dB

.: Disain :.

Kujutegur

SFX

Toote värv

Black

Võimsus ja energiatarve

Sisendvool

36 A

Sisseehitatud aku

Ei

Jahutus

Ventilaatorite arv

1

.: Tehnilised andmed :.

Garantii

24

Toide

AC (toide) sisend

on +12V : 450 W

Funktsioonid

Vahelduvvoolu pinge

110-230 V

Töötingimused

Kasutamistemperatuur (T-T)

10 - 50 °C

.: Pakendi andmed :.

Pakenditaara kaal

0.3 kg

Pakendi maht

0.00 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

230.00 mm

Pakendi laius ( mm )

180 mm

Pakendi kõrgus ( mm )

100 mm

Tehnilised andmed

Fan function

80mm

PCI Express power connectors (6-pin)

1

PCI Express power connectors (8-pin)

1

EPS power connector (8-pin)

Jah

WEEE maks

Ei

Paper/Pasteboard

351.00 g

Plastic (No PET)

11.00 g

Üldised näitajad

Ultra-quiet 80mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU’s internal temperature reaches 55°C.

Connector(s)

* 1 x 24 / 20-Pin motherboard connector（300mm）*1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）*1 x 6-Pin PCIE connector（400mm）*3 x SATA connector （300mm / 200mm / 100mm）*2 x 4-Pin Peripheral connector （300mm / 200mm） *1 x 4-Pin Floppy connector（300mm / 200mm / 200mm）

Mudeli number

SFX 450W PSU, 80 PLUS Bronze v 3.0

Floppy drive power connector

1

Motherboard power connector

24-pin ATX

Number of SATA power connectors

3

Peripheral (Molex) power connectors (4-pin)

2

Power Factor Correction (PFC) type

Active

Power protection features

Over current, Over p

Product codename

SST-ST45SF

Purpose

PC

80 PLUS Certification

80 PLUS Bronze

Combined power (+3.3V)

120 W

Combined power (+5V)

120 W

Efficiency

85 %

Fan

80mm

Fan Diameter

8 cm

Max output current (+12V)

36 A

Max output current (+3.3V)

21 A

Max output current (+5V)

22 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.5 A

Maximum input current (@110V)

+12V,+3.3V,+5V,+5Vsb A

Mean time between failures (MTBF)

100000 h

Nominal power

450 W

Power factor

0.95

Tehnilised andmed

Netokaal

1.3 kg

Brutokaal

1.60 kg

Mõõdud (l x s x k)

125 x 100 x 63.5 mm
