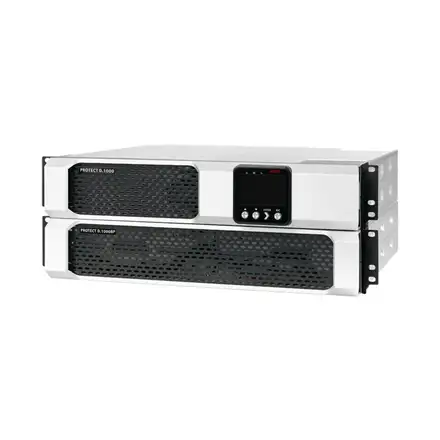

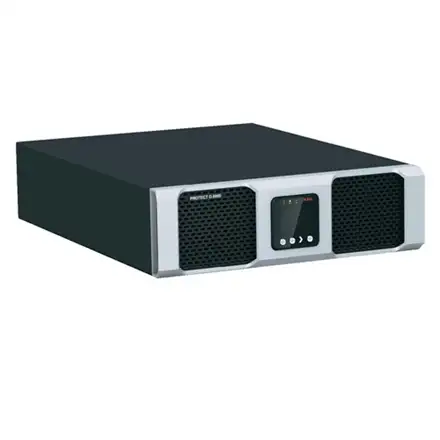

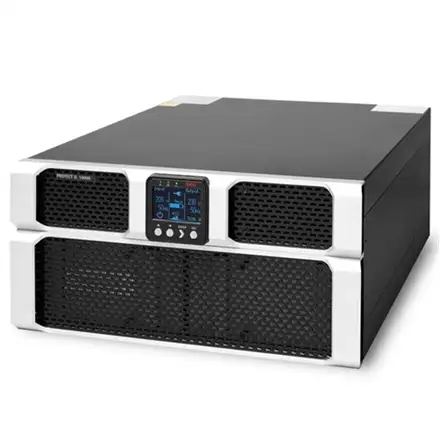

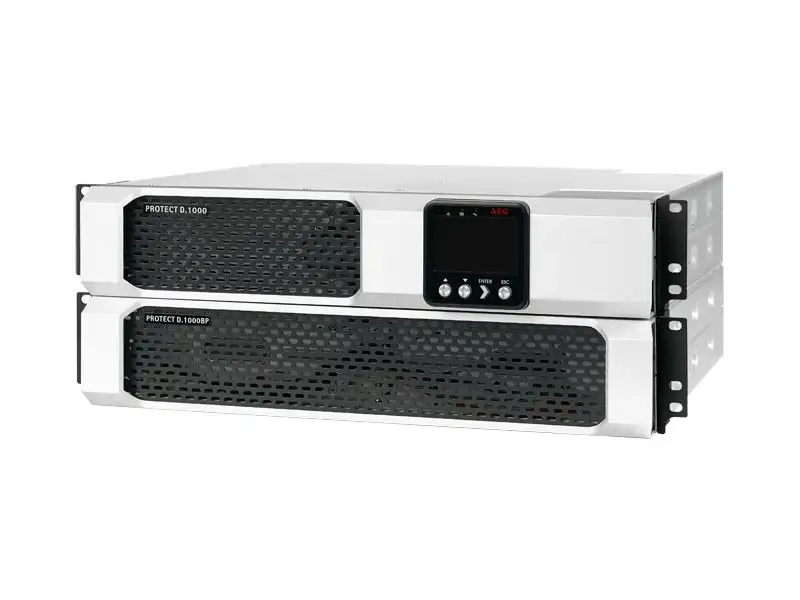

AEG UPS Protect D. 6000, 6000 VA, 5400 W, 276 V, 200 V, Terminal

.: Üldised omadused :.

Müratase

55 dB

.: Disain :.

Kujutegur

Rackmount

LED-indikaatorid

Jah

Toote värv

Grey

.: Pesad & liidesed :.

USB 2.0 portide arv

1

.: Aku & Toiteallikas :.

Akuelementide arv

Accumulator

Akutehnoloogia

Sealed Lead Acid (VR

Võimsus ja energiatarve

Sisseehitatud aku

Jah

Väljundvõimsus

5400 W

Andmekandja/Kõvaketas

Maht

6000 VA

.: Tehnilised andmed :.

Garantii

24

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Pakenditaara kaal

7.2 kg

Pakendi maht

0.3896295 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

580 mm

Pakendi laius ( mm )

795 mm

Pakendi kõrgus ( mm )

845 mm

Tehnilised andmed

Crest factor

3:1

Maximum current

29 A

Input operation voltage (min)

176 V

AC outlet types

C13 coupler, C19 cou

AC outlets quantity

3

Waveform

Sine

Audible alarm(s)

Jah

Emergency Power Off (EPO)

Jah

Hot-swap battery

Jah

Automatic battery test

Jah

Power plug

Terminal

Output voltage THD

2 %

Rack mounting

3U

Output connection type

2 x C13, 1 x C19, 1

WEEE maks

Jah

WEE klassifikatsioon

CL109:4:2017-04-01

Composition of battery

CL127:NK:2016-12-09

Classification of battery

CL126:PE:2016-12-09

TI weight (kg)

41.20 kg

Paper/Pasteboard

755.00 g

Plastic (No PET)

148.00 g

.: Ekraan :.

LCD

Mudeli number

Protect D. 6000,

Power protection features

Overload, Short circ

RS-232 ports

1

UPS topology

On line

Battery recharge time

3 h

Battery voltage

180 V

Certification

EN62010-2\nEN62040-1

Efficiency

96 %

Input operation voltage (max)

276 V

Material

Metal

Operating altitude

0 - 1000 m

Output operation voltage (max)

240 V

Output operation voltage (min)

200 V

Output power capacity

6000 VA

Power supply input frequency

50/60 Hz

Special features

• VFI topology (online /double conversion) protects against all network problems</br>• An increase of the available performance by approx. 20 % through a 0.9lag power factor</br>• Increased efficiency through the ECO and ECO+ mode</br>• Advanced battery charging technology for maximum durability of the battery</br>• Hot-swappable batteries, easy replacement through hinged front</br>• Additional battery packs for easy scaling of the autonomy times</br>• Extension slot for communication cards, communication in parallel is possible through the RS232 / USB interface and SNMP</br>• Low height (2 U) including integrated batteries</br>• Switchable UPS outputs with innovative locking mechanism</br>• Display of the UPS parameters on a graphic LCD, direct configuration is possible with the control panel</br>• Freely programmable potential-free contact plus emergency shutdown contact</br>• May also be used as a frequency converter</br>• 36-months warranty (free registration required)

Tehnilised andmed

Netokaal

46.00

Brutokaal

53.20 kg

Laius

48.6 cm

Sügavus

71.5 cm

Kõrgus

13.2 cm

Toote kaal

46 g
